Standard one thread

Standard one thread

Drawing No: 3-400070-00

Description

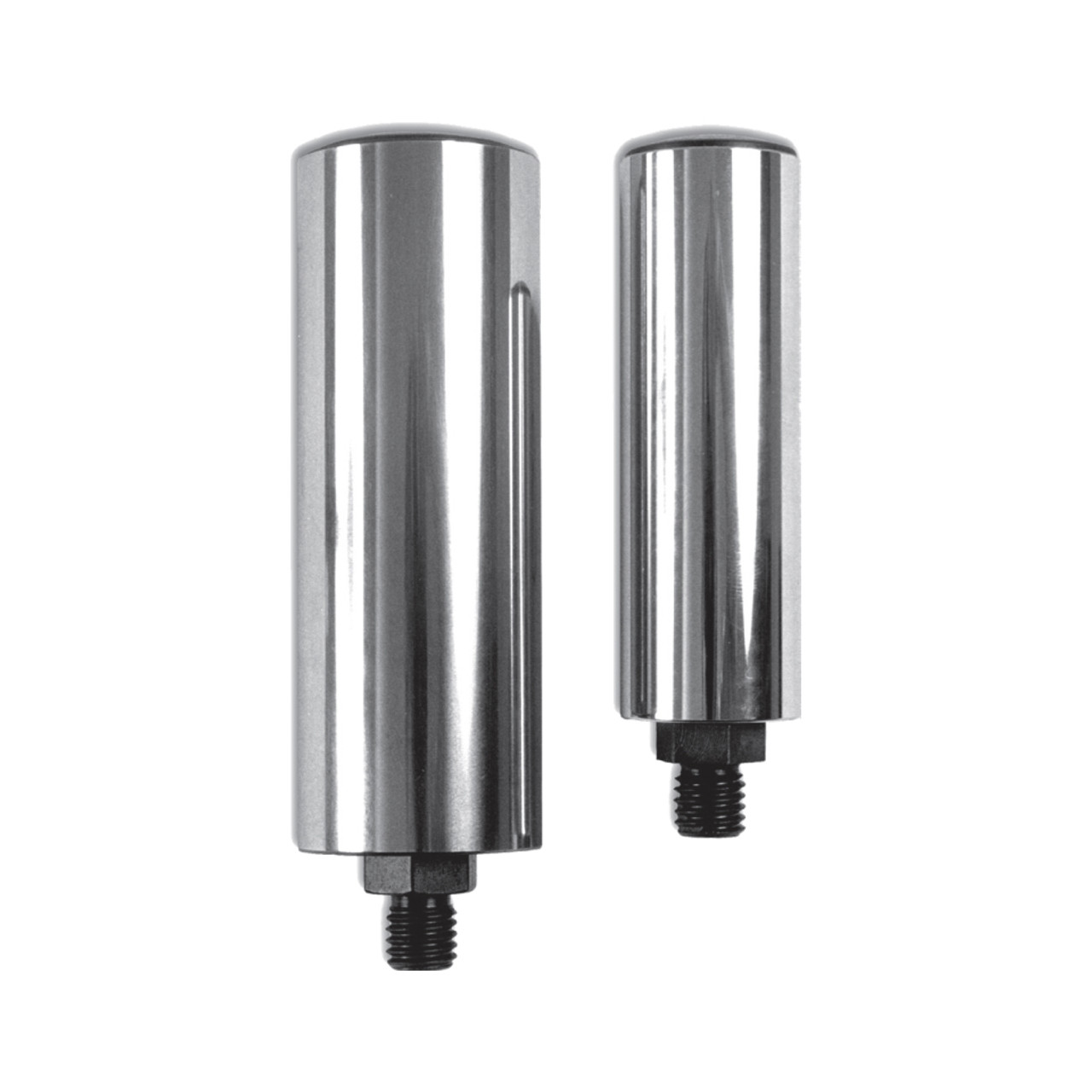

Rollers in HRX material with one threaded shaft end. Comes in different lengths and diameters as well as with different thread designs.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Thread 1 Thread 1 length Thread 2 Thread 2 length
1881 14.00 mm 60.00 mm 8 M 10.00 mm n/a M n/a mm
0026 60.00 mm 110.00 mm 12 M 12.00 mm 12 M 12.00 mm
3554 20.00 mm 100.00 mm 10 M 1.50 mm n/a M n/a mm
8860 40.00 mm 130.00 mm 12 M 24.00 mm n/a M n/a mm
0699A 20.00 mm 80.00 mm 8 M 20.00 mm n/a M n/a mm
2766 25.00 mm 50.00 mm 10 M 10.00 mm n/a M n/a mm
11399 30.00 mm 90.00 mm 12 M 12.00 mm n/a M n/a mm
1425 40.00 mm 110.00 mm 12 M 25.00 mm n/a M n/a mm
0107 40.00 mm 110.00 mm 12 M 12.00 mm n/a M n/a mm
7346A 25.00 mm 40.00 mm 8 M 10.00 mm n/a M n/a mm
7925 20.00 mm 100.00 mm 8 M 20.00 mm n/a M n/a mm
0028 60.00 mm 150.00 mm 12 M 12.00 mm n/a M n/a mm
3407 50.00 mm 200.00 mm 12 M 24.00 mm n/a M n/a mm
0025 40.00 mm 250.00 mm 12 M 12.00 mm n/a M n/a mm
3893A 30.00 mm 90.00 mm 12 M 25.00 mm n/a M n/a mm
12986 30.00 mm 65.00 mm 8 M 35.00 mm n/a M n/a mm
2708 50.00 mm 50.00 mm 12 M 24.00 mm n/a M n/a mm
7417 30.00 mm 90.00 mm 10 M 30.00 mm n/a M n/a mm
8024 40.00 mm 80.00 mm 12 M 24.00 mm n/a M n/a mm
3556 30.00 mm 200.00 mm 12 M 12.00 mm n/a M n/a mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1881
Diameter, Outer 14.00 mm
Length 60.00 mm
Thread 1 8 M
Thread 1 length 10.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 0026
Diameter, Outer 60.00 mm
Length 110.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 12 M
Thread 2 length 12.00 mm
Article. No 3554
Diameter, Outer 20.00 mm
Length 100.00 mm
Thread 1 10 M
Thread 1 length 1.50 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 8860
Diameter, Outer 40.00 mm
Length 130.00 mm
Thread 1 12 M
Thread 1 length 24.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 0699A
Diameter, Outer 20.00 mm
Length 80.00 mm
Thread 1 8 M
Thread 1 length 20.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 2766
Diameter, Outer 25.00 mm
Length 50.00 mm
Thread 1 10 M
Thread 1 length 10.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 11399
Diameter, Outer 30.00 mm
Length 90.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 1425
Diameter, Outer 40.00 mm
Length 110.00 mm
Thread 1 12 M
Thread 1 length 25.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 0107
Diameter, Outer 40.00 mm
Length 110.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 7346A
Diameter, Outer 25.00 mm
Length 40.00 mm
Thread 1 8 M
Thread 1 length 10.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 7925
Diameter, Outer 20.00 mm
Length 100.00 mm
Thread 1 8 M
Thread 1 length 20.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 0028
Diameter, Outer 60.00 mm
Length 150.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 3407
Diameter, Outer 50.00 mm
Length 200.00 mm
Thread 1 12 M
Thread 1 length 24.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 0025
Diameter, Outer 40.00 mm
Length 250.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 3893A
Diameter, Outer 30.00 mm
Length 90.00 mm
Thread 1 12 M
Thread 1 length 25.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 12986
Diameter, Outer 30.00 mm
Length 65.00 mm
Thread 1 8 M
Thread 1 length 35.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 2708
Diameter, Outer 50.00 mm
Length 50.00 mm
Thread 1 12 M
Thread 1 length 24.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 7417
Diameter, Outer 30.00 mm
Length 90.00 mm
Thread 1 10 M
Thread 1 length 30.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 8024
Diameter, Outer 40.00 mm
Length 80.00 mm
Thread 1 12 M
Thread 1 length 24.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
Article. No 3556
Diameter, Outer 30.00 mm
Length 200.00 mm
Thread 1 12 M
Thread 1 length 12.00 mm
Thread 2 n/a M
Thread 2 length n/a mm
!
