Standard double-ended threaded shafts with nuts

Standard double-ended threaded shafts with nuts

Drawing No: 3-400233-03

Description

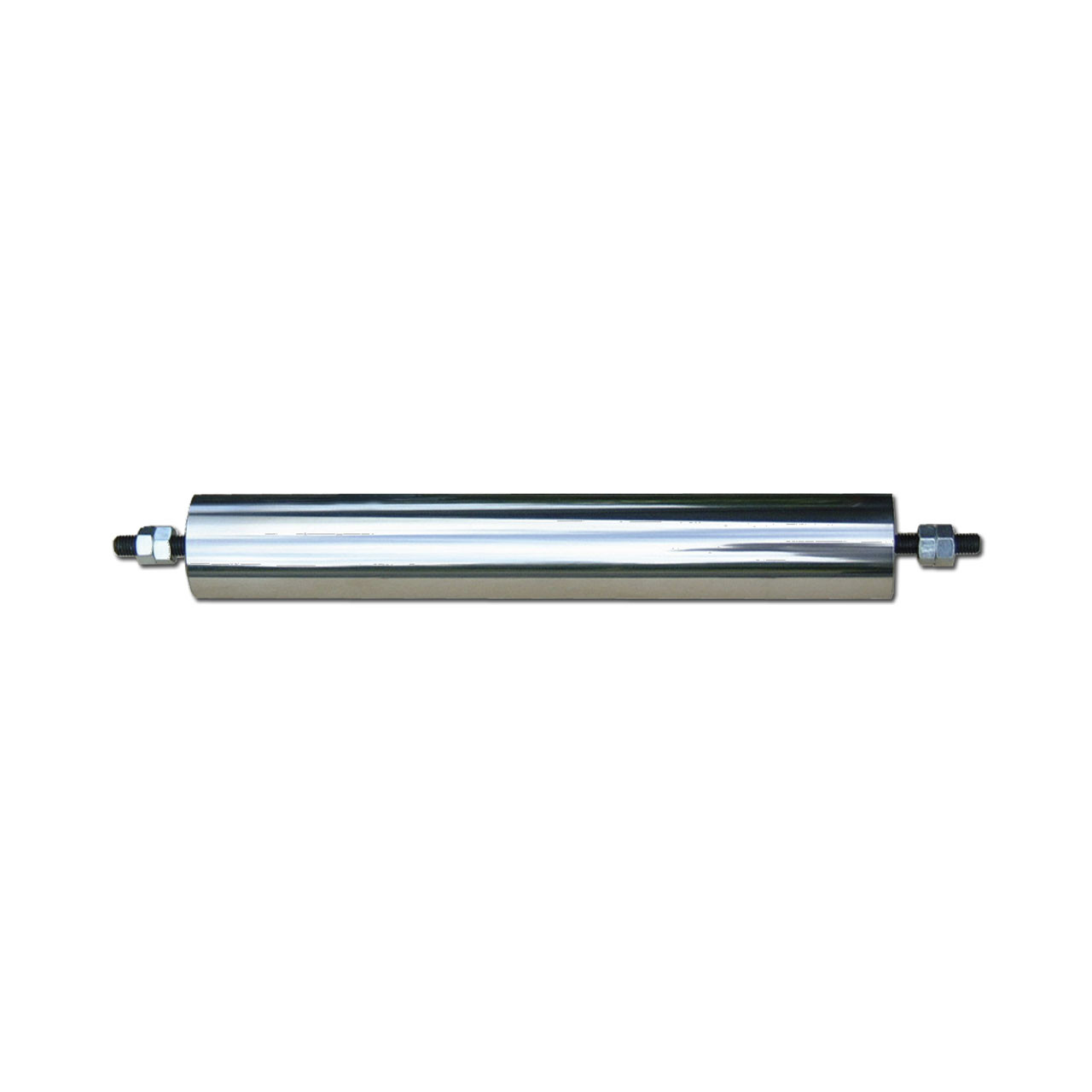

Rollers in HRX material with two shaft ends and nuts. Comes in different lengths and diameters as well as with different thread designs.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Thread 1 Thread 1 length Thread 2 Thread 2 length
0038 60.00 mm 900.00 mm 12 M 47.50 mm 12 M 47.50 mm
1898A 80.00 mm 1000.00 mm 20 M 47.50 mm 20 M 47.50 mm
0034 60.00 mm 180.00 mm 12 M 47.50 mm 12 M 47.50 mm
0036 60.00 mm 220.00 mm 12 M 47.50 mm 12 M 47.50 mm
0039 60.00 mm 1100.00 mm 12 M 47.50 mm 12 M 47.50 mm
1154 60.00 mm 400.00 mm 12 M 30.00 mm 12 M 30.00 mm
2845 50.00 mm 520.00 mm 12 M 34.00 mm 12 M 34.00 mm
3142 60.00 mm 320.00 mm 12 M 47.50 mm 12 M 47.50 mm
4525 50.00 mm 250.00 mm 12 M 47.50 mm 12 M 47.50 mm
4898 60.00 mm 195.00 mm 12 M 47.50 mm 12 M 47.50 mm
10364 50.00 mm 280.00 mm 12 M 47.50 mm 12 M 47.50 mm
1762 60.00 mm 1000.00 mm 12 M 47.50 mm 12 M 47.50 mm
2036 60.00 mm 660.00 mm 12 M 55.00 mm 12 M 55.00 mm
0041 80.00 mm 1000.00 mm 20 M 47.50 mm 20 M 47.50 mm
2035 60.00 mm 450.00 mm 12 M 55.00 mm 12 M 55.00 mm
2061 60.00 mm 540.00 mm 12 M 55.00 mm 12 M 55.00 mm
0037 60.00 mm 250.00 mm 12 M 47.50 mm 12 M 47.50 mm
1166 60.00 mm 380.00 mm 12 M 47.50 mm 12 M 47.50 mm
2404 60.00 mm 160.00 mm 12 M 40.00 mm 12 M 40.00 mm
6511 60.00 mm 780.00 mm 12 M 47.50 mm 12 M 47.50 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0038
Diameter, Outer 60.00 mm
Length 900.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 1898A
Diameter, Outer 80.00 mm
Length 1000.00 mm
Thread 1 20 M
Thread 1 length 47.50 mm
Thread 2 20 M
Thread 2 length 47.50 mm
Article. No 0034
Diameter, Outer 60.00 mm
Length 180.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 0036
Diameter, Outer 60.00 mm
Length 220.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 0039
Diameter, Outer 60.00 mm
Length 1100.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 1154
Diameter, Outer 60.00 mm
Length 400.00 mm
Thread 1 12 M
Thread 1 length 30.00 mm
Thread 2 12 M
Thread 2 length 30.00 mm
Article. No 2845
Diameter, Outer 50.00 mm
Length 520.00 mm
Thread 1 12 M
Thread 1 length 34.00 mm
Thread 2 12 M
Thread 2 length 34.00 mm
Article. No 3142
Diameter, Outer 60.00 mm
Length 320.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 4525
Diameter, Outer 50.00 mm
Length 250.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 4898
Diameter, Outer 60.00 mm
Length 195.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 10364
Diameter, Outer 50.00 mm
Length 280.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 1762
Diameter, Outer 60.00 mm
Length 1000.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 2036
Diameter, Outer 60.00 mm
Length 660.00 mm
Thread 1 12 M
Thread 1 length 55.00 mm
Thread 2 12 M
Thread 2 length 55.00 mm
Article. No 0041
Diameter, Outer 80.00 mm
Length 1000.00 mm
Thread 1 20 M
Thread 1 length 47.50 mm
Thread 2 20 M
Thread 2 length 47.50 mm
Article. No 2035
Diameter, Outer 60.00 mm
Length 450.00 mm
Thread 1 12 M
Thread 1 length 55.00 mm
Thread 2 12 M
Thread 2 length 55.00 mm
Article. No 2061
Diameter, Outer 60.00 mm
Length 540.00 mm
Thread 1 12 M
Thread 1 length 55.00 mm
Thread 2 12 M
Thread 2 length 55.00 mm
Article. No 0037
Diameter, Outer 60.00 mm
Length 250.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 1166
Diameter, Outer 60.00 mm
Length 380.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
Article. No 2404
Diameter, Outer 60.00 mm
Length 160.00 mm
Thread 1 12 M
Thread 1 length 40.00 mm
Thread 2 12 M
Thread 2 length 40.00 mm
Article. No 6511
Diameter, Outer 60.00 mm
Length 780.00 mm
Thread 1 12 M
Thread 1 length 47.50 mm
Thread 2 12 M
Thread 2 length 47.50 mm
!
