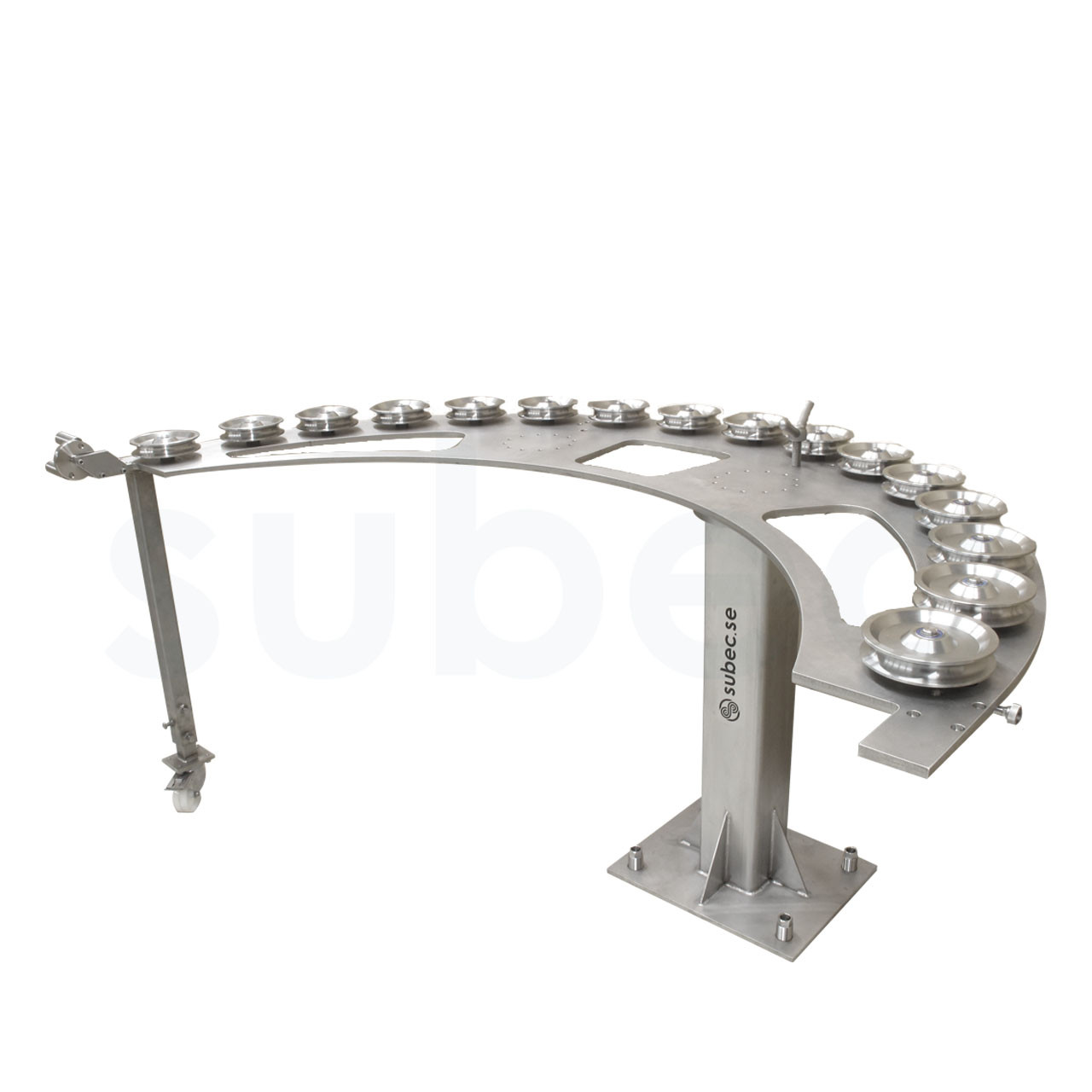

Example 180° Roller Arc

Example 180° Roller Arc

Drawing No: 3-300113-00

Description

These are previously sold 180-degree roller arcs, showcasing common configurations. Each arc can be customized and adapted to your specific requirements, including dimensions, materials and mounting options.

Dimensions

  • Hide Filters
Article. No Material, Body Surface Treatment Coating Radius Roller Arc Angle Width Rollers - Qty Rollers - Horizontal Rollers - Vertical Material, Roller/Sheave Diameter, Outer Diameter, Root Groove - Width Groove - Radius Groove - Angle Product Range - MIN Product Range - MAX Suffix
11361B Stainless n/a n/a 1000.00 mm 180.00 ° 2040.00 mm 16 n/a 16 Stainless 160.00 mm 124.00 mm 24.00 mm 0.50 mm 90.00 ° 0.00 mm 24.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 11361B
Material, Body Stainless
Surface Treatment n/a
Coating n/a
Radius 1000.00 mm
Roller Arc Angle 180.00 °
Width 2040.00 mm
!
