Mechanical Length Counters
-

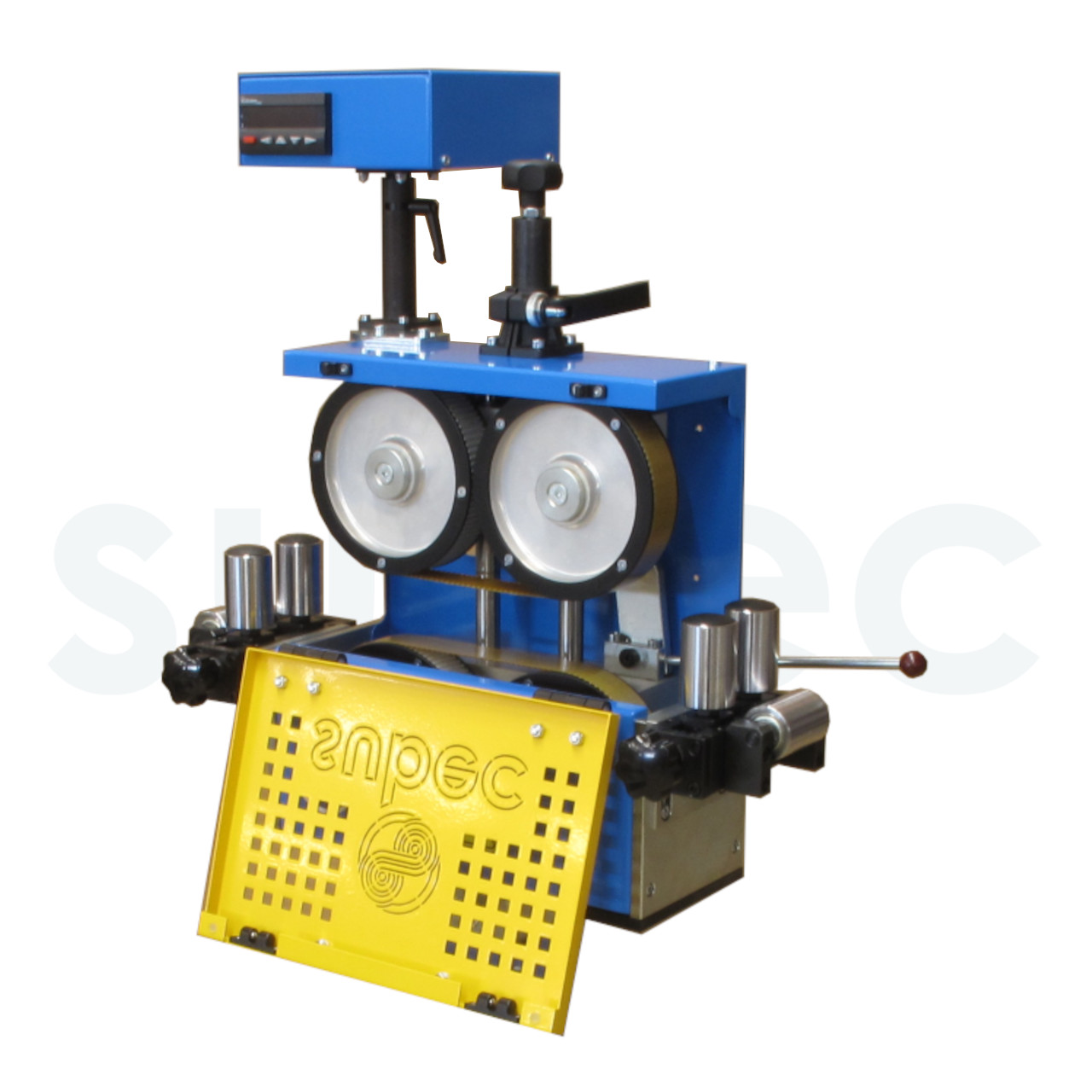

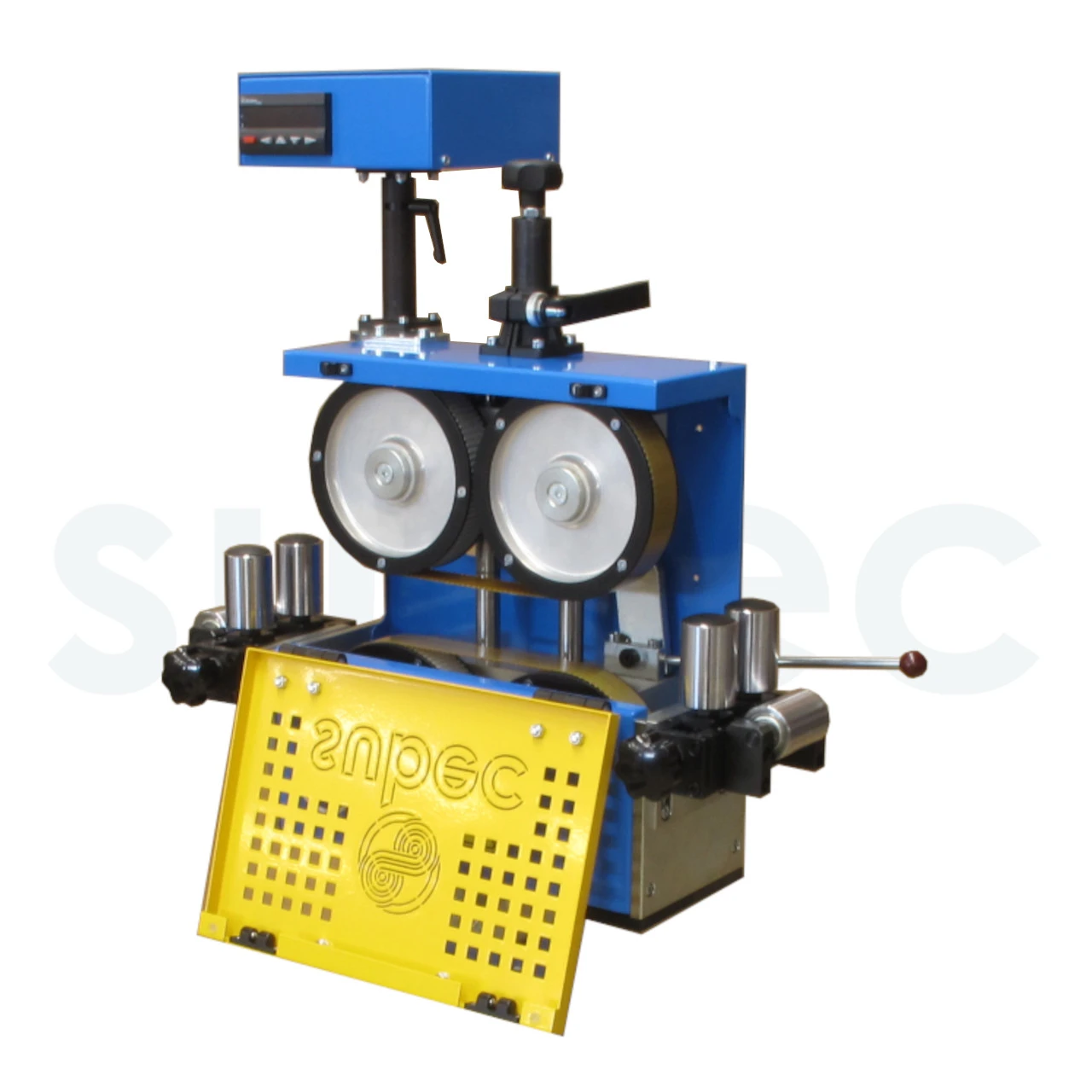

CAT Length Counter 3-50
Drawing No:Subec’s CAT3-50 Length Counter is designed for precise measurement of wires, cables, plastic tubes, and ropes with product diameters up to 50 mm. Built for heavy industrial environments, the CAT3-50 combines durability with reliable performance. The system features an upper and lower caterpillar belt module for stable and accurate product guidance. The upper module opens mechanically or with pneumatics, and includes a force adjustment system, allowing operators to fine-tune the contact force without damaging the product. The lower module is fixed for consistent alignment. For ease of use, the unit includes an electronics cabinet mounted on a rotatable stand, complete with protection covers for safety. The counter can also be mounted on a height-adjustable stand and is equipped with guide units on both sides to ensure smooth and accurate product feeding. Robust, precise, and operator-friendly, the CAT3-50 is a reliable choice for length measurement in demanding production processes.
-

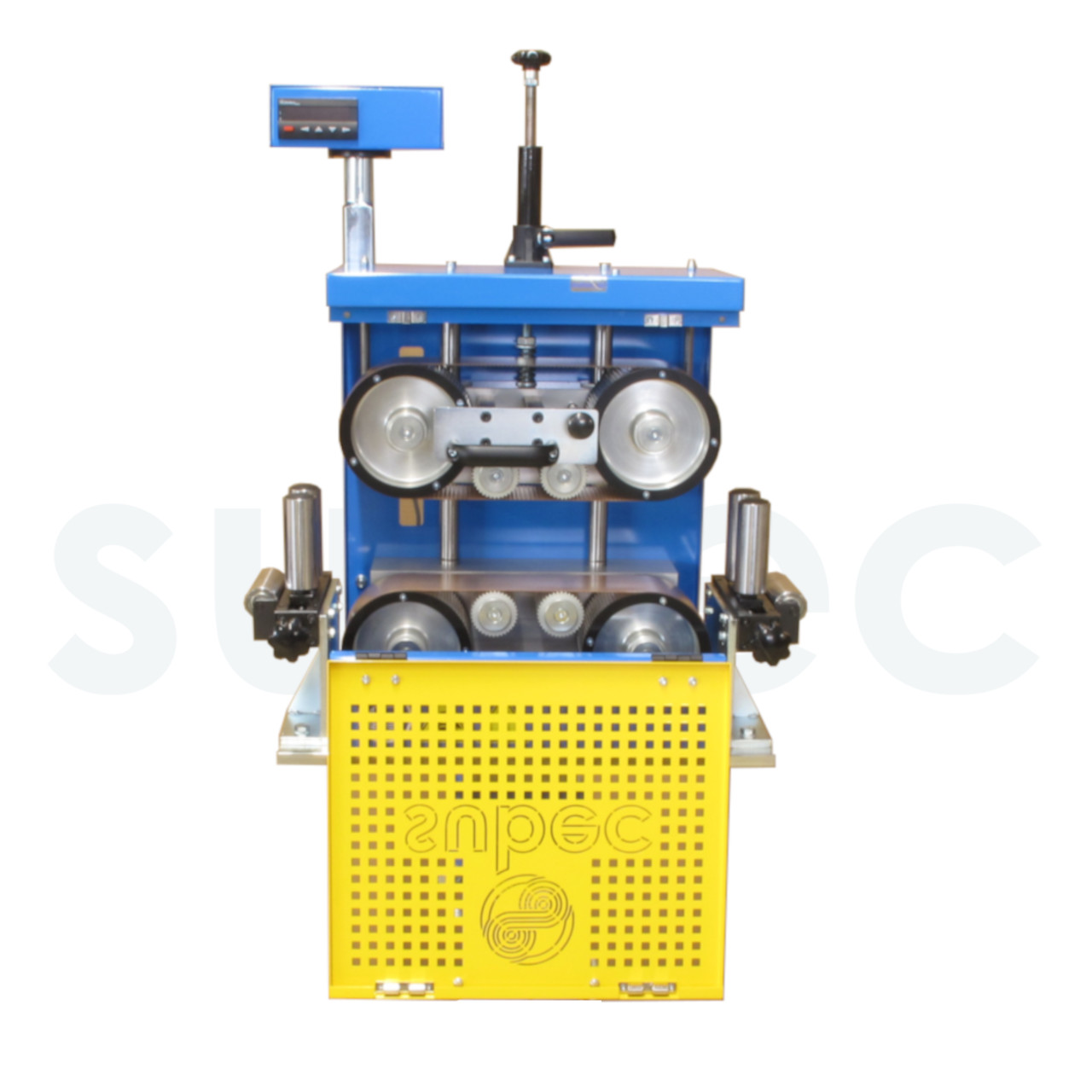

CAT Length Counter 5-100
Drawing No:Subec’s CAT5-100 Length Counter is designed for precise measurement of wires, cables, plastic tubes, and ropes with product diameters up to 100mm. Built for heavy industrial environments, the CAT5-100 combines durability with reliable performance. The system features an upper and lower caterpillar belt module for stable and accurate product guidance. The upper module opens mechanically or with pneumatics, and includes a force adjustment system, allowing operators to fine-tune the contact force without damaging the product. The lower module is fixed for consistent alignment. For ease of use, the unit includes an electronics cabinet mounted on a rotatable stand, complete with protection covers for safety. The counter can also be mounted on a height-adjustable stand and is equipped with guide units on both sides to ensure smooth and accurate product feeding. Robust, precise, and operator-friendly, the T5-100 is a reliable choice for length measurement in demanding production processes.
-

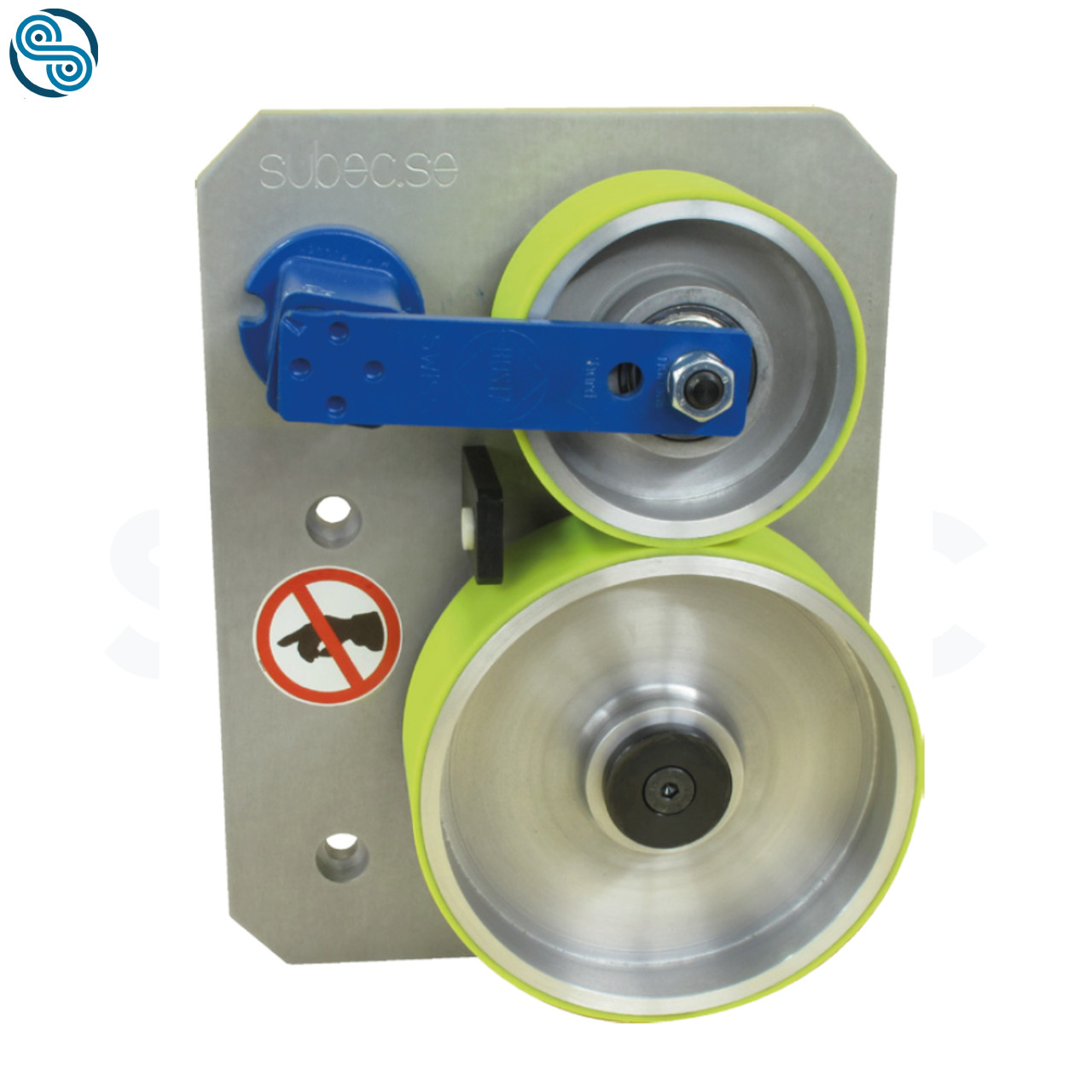

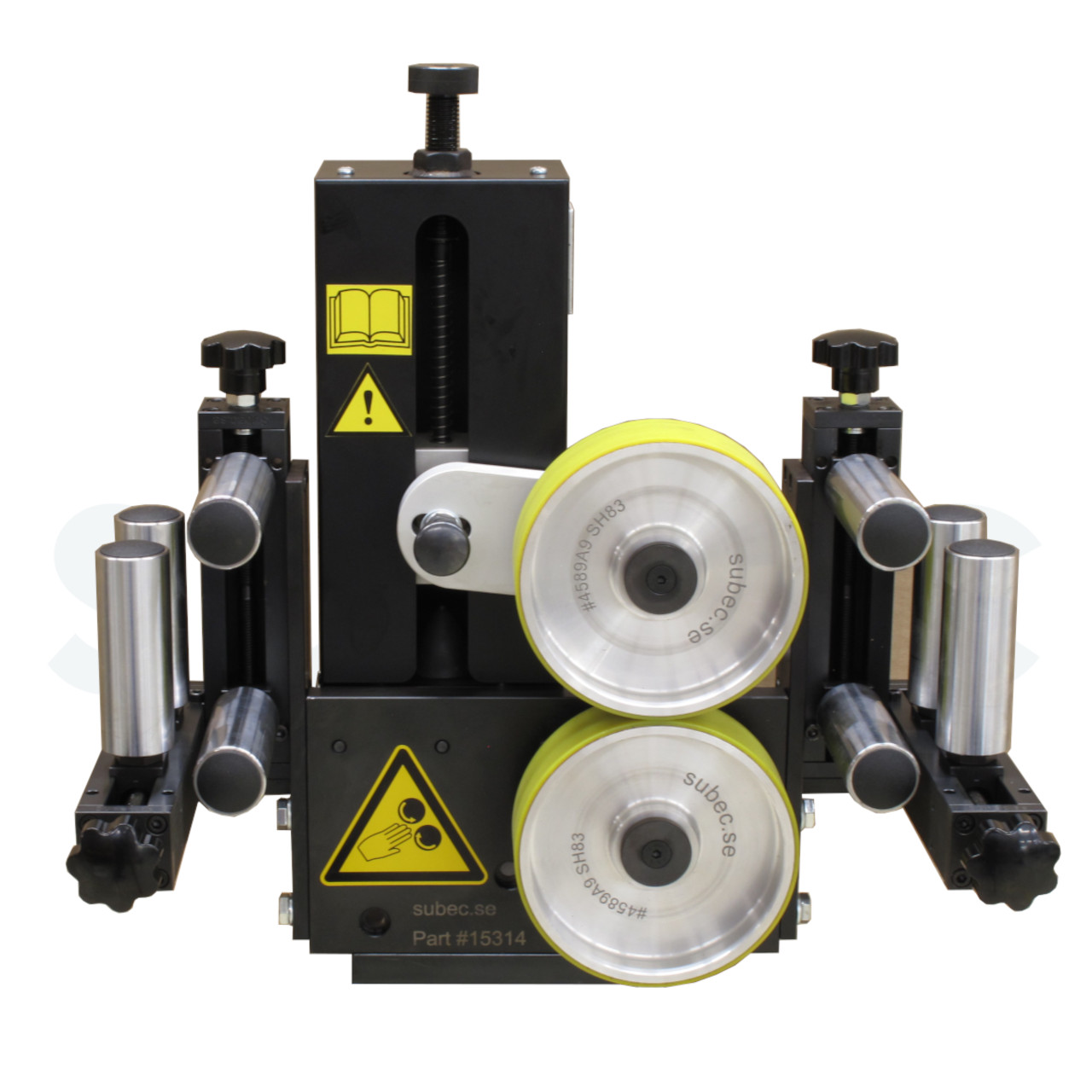

MS Length Counter - Adjustable
Drawing No:Subec’s MS Length Counters are wheel-encoder based measuring systems designed for accurate length measurement of cables, wires, tubes, and pipes across a wide range of diameters. The adjustable opening system features an upper wheel with spring function that ensures precise and stable product guidance by applying just the right amount of pressure — firm enough for accuracy, but gentle enough to avoid product damage. The lower wheel is equipped with an encoder mounted on the backside, providing reliable and repeatable measurement results in demanding production environments. Robust and operator-friendly, the MS series delivers consistent performance and can be integrated seamlessly into various production setups.
-

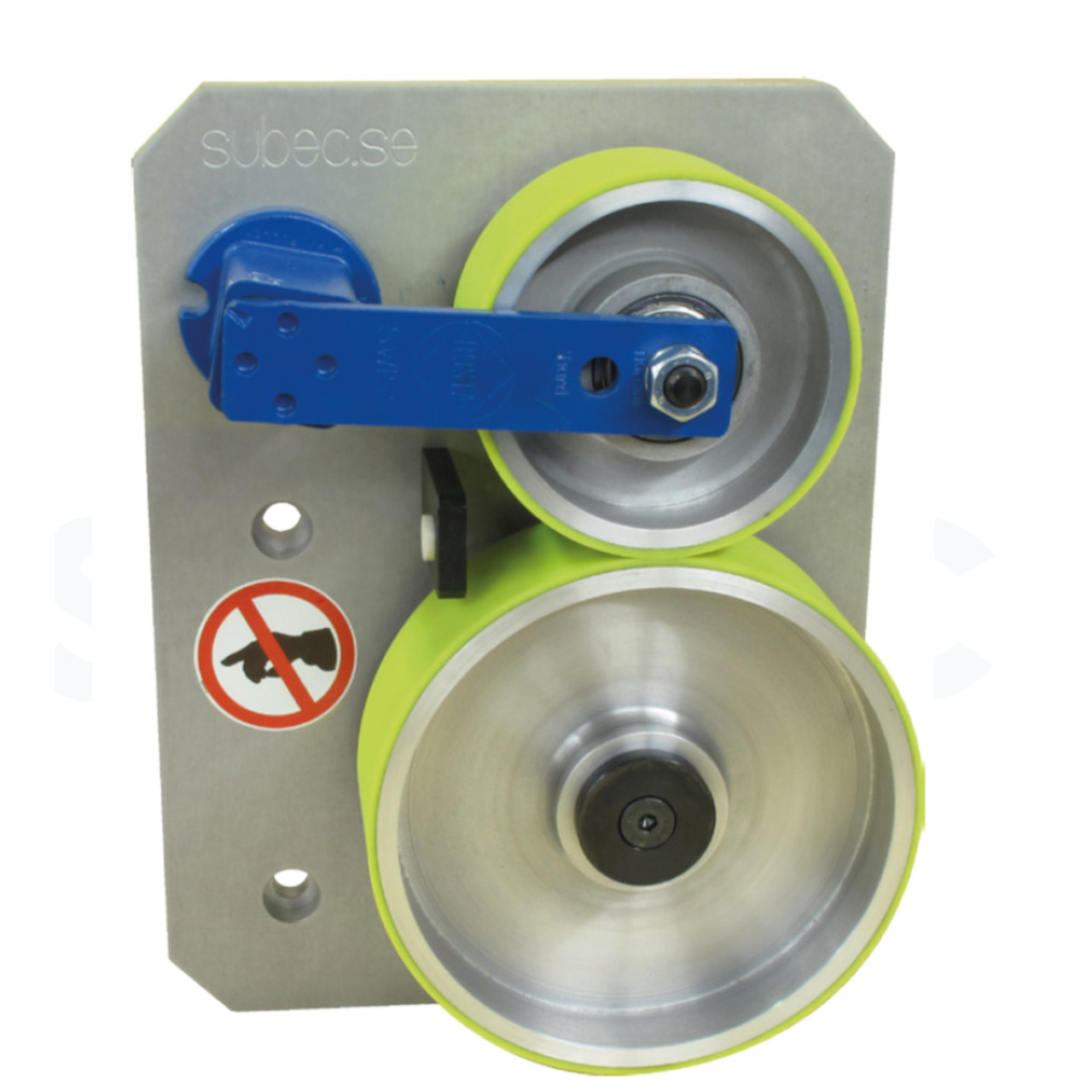

MS Length Counter - Fixed
Drawing No:Subec’s MS Length Counters are wheel-encoder based measuring systems designed for accurate length measurement of cables, wires, tubes, and pipes across a wide range of diameters. The fixed system features an upper wheel with spring function that ensures precise and stable product guidance by applying just the right amount of pressure — firm enough for accuracy, but gentle enough to avoid product damage. The lower wheel is equipped with an encoder mounted on the backside, providing reliable and repeatable measurement results in demanding production environments. Robust and operator-friendly, the MS series delivers consistent performance and can be integrated seamlessly into various production setups.
-

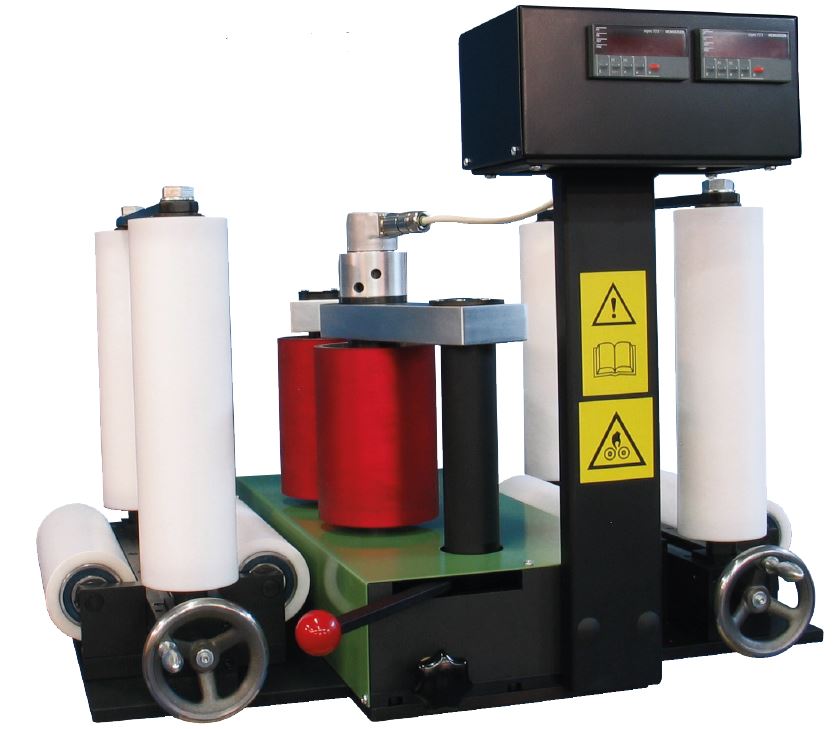

SWA Length Counter
Drawing No:Subec’s SWA Length Measuring Systems are designed for accurate measurement of cables, wires, tubes, and pipes across a wide range of diameters. These units feature a torsion spring pressure system with an encoder mounted on one of the two pressure rollers, ensuring reliable and repeatable results. The compact construction allows easy integration into production lines, while the clamp pressure can be finely adjusted with a precision regulator to match different products. An integrated electronics cabinet provides control and monitoring, and the system can be mounted on a height-adjustable stand for optimal positioning. With guide units on both sides, the SWA counters guarantee stable product handling and consistent measurement accuracy. Robust, precise, and operator-friendly, the SWA series delivers dependable performance in demanding production environments.
-

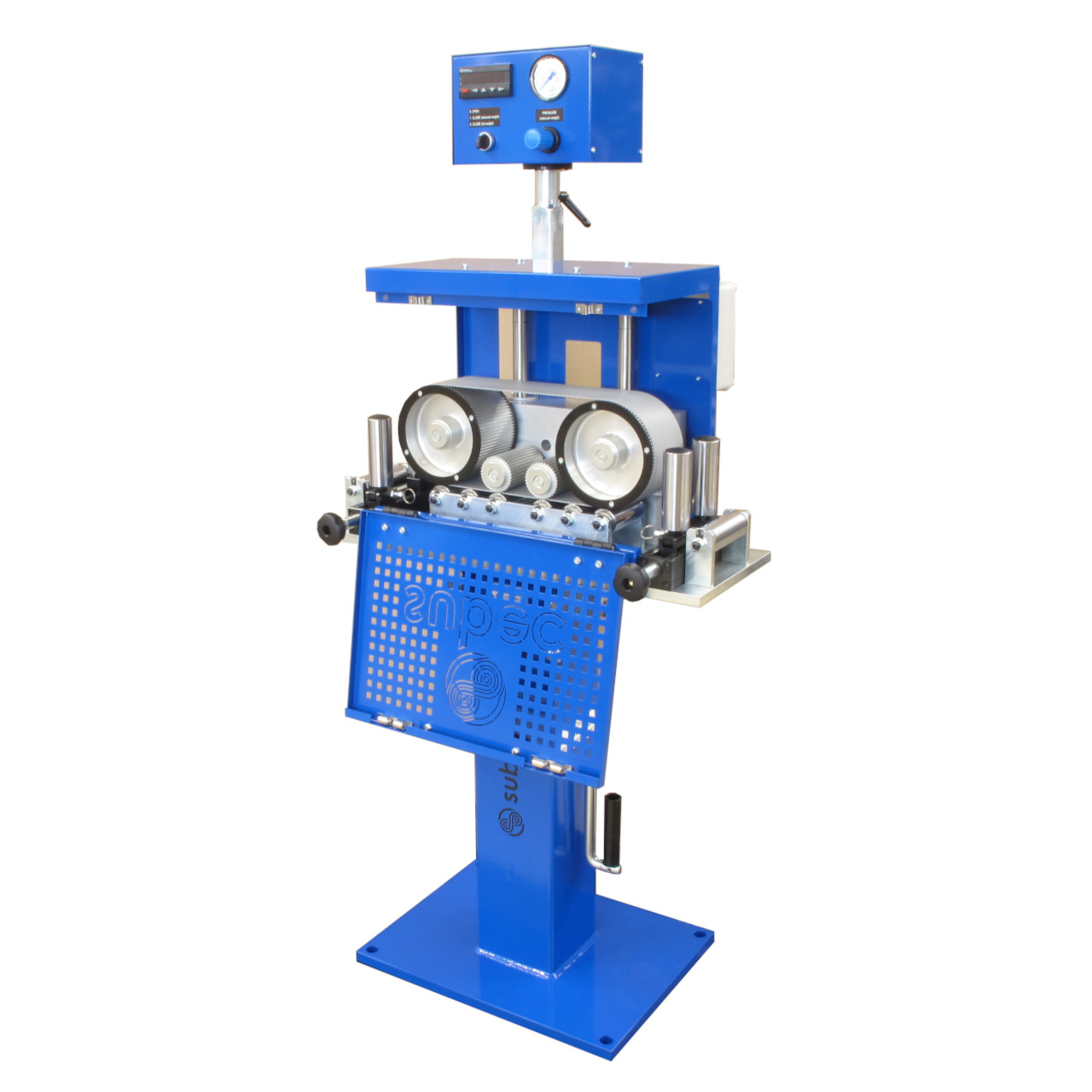

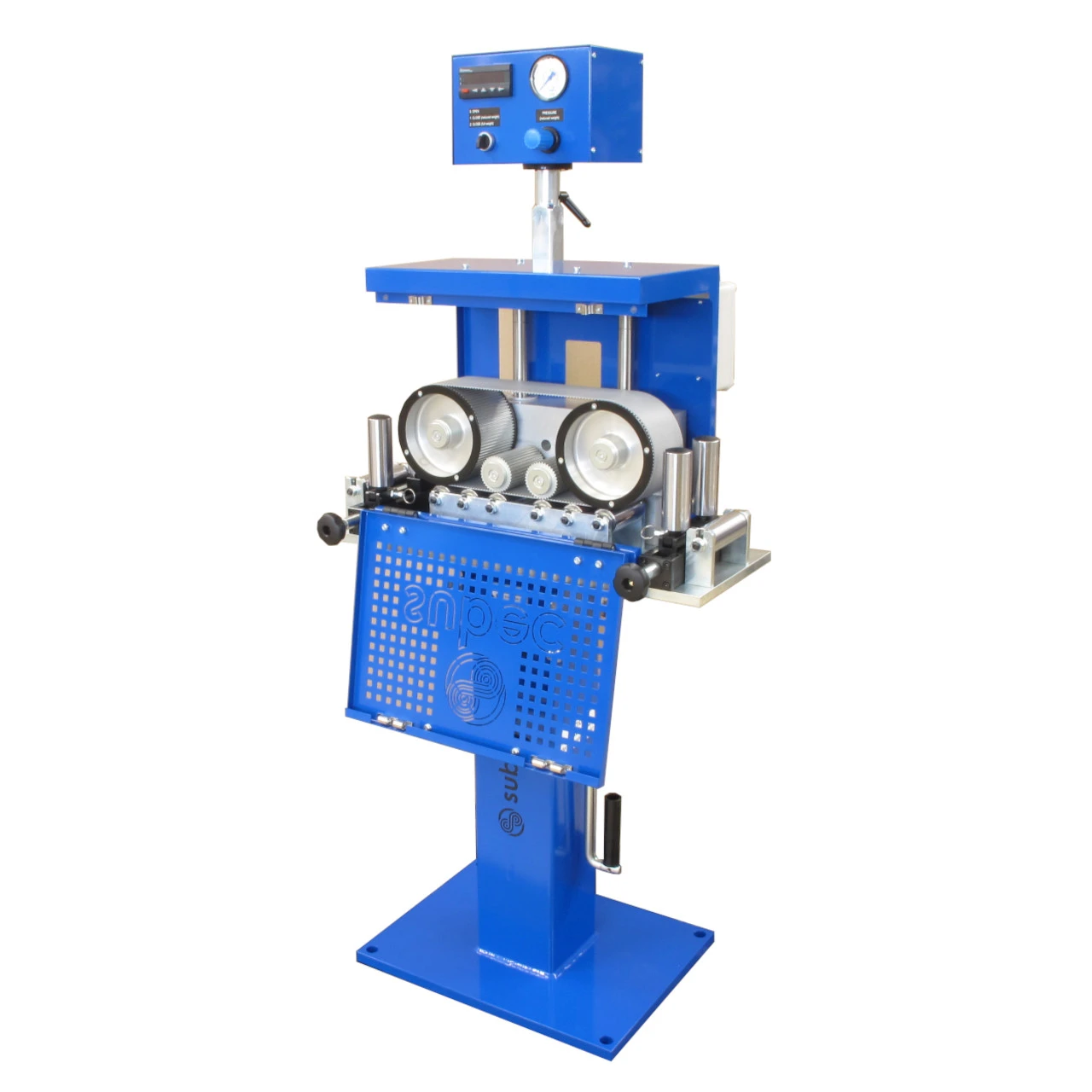

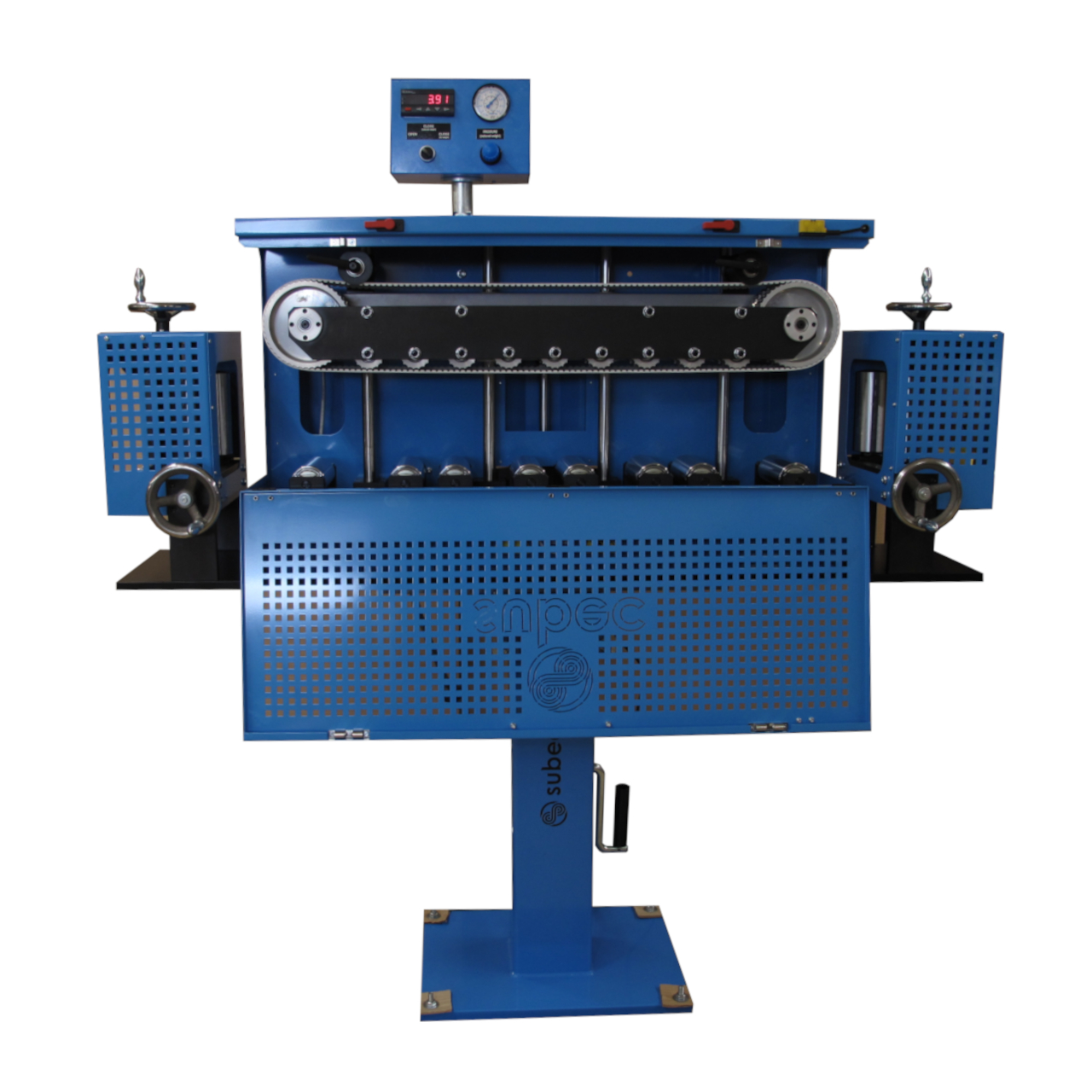

TOP CAT Length Counter
Drawing No:Subec’s TOP CAT units are caterpillar belt-type length measuring systems designed for cables, wires, tubes, and pipes for various diameters. The upper module features toothed belt wheels with a toothed belt, ensuring precise and stable product guidance. A pneumatic open/close system with adjustable pressure allows operators to regulate the force applied to the product. By minimizing pressure when possible, the lifetime of belts and wheels is significantly extended. For ease of use, the pneumatic operating panel and display are integrated into the counter’s control unit, providing accurate measurement and operator-friendly handling in demanding production environments.
