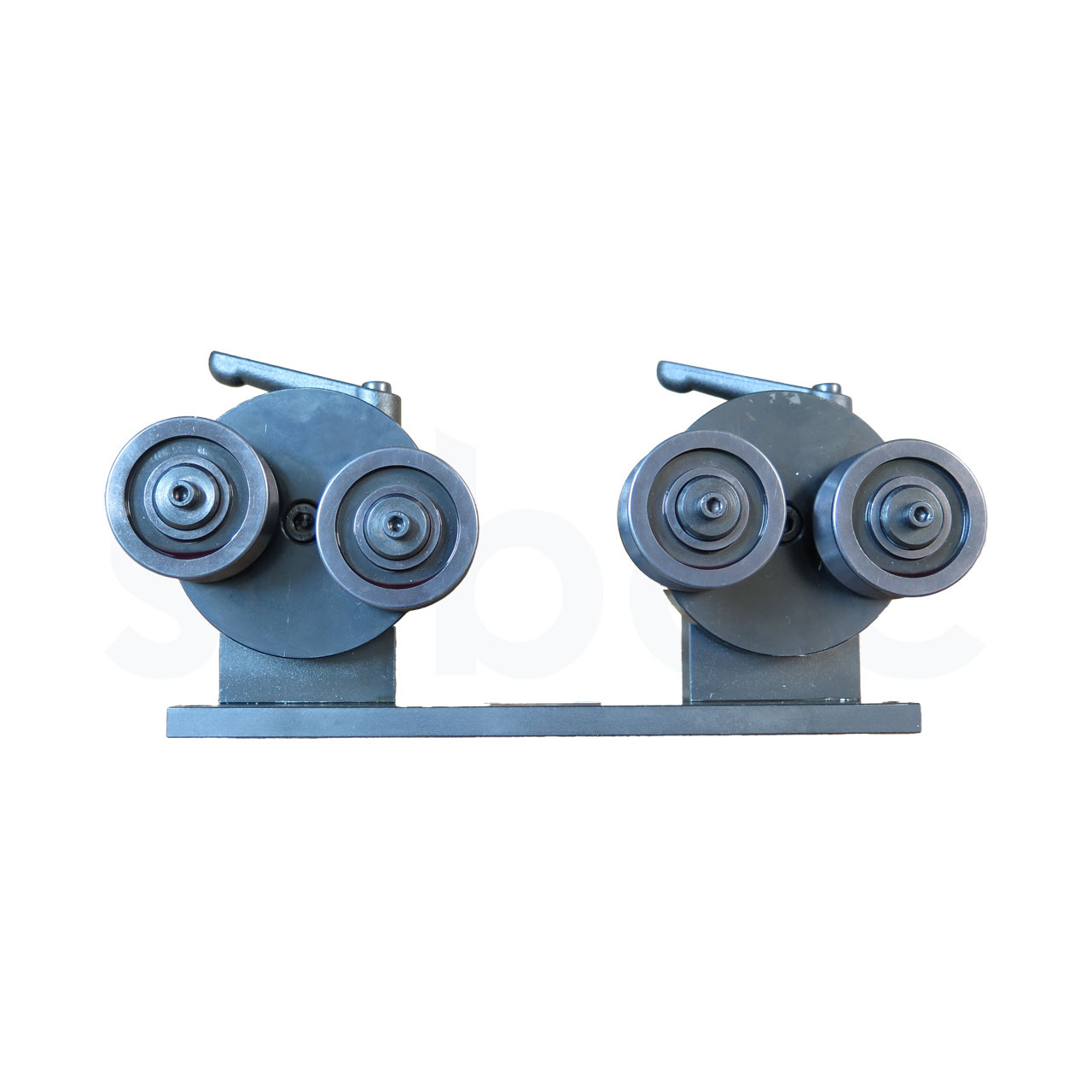

Steel body, with Steel Rollers

Steel body, with Steel Rollers

Drawing No: 3-300450-03

Description

Products Ø 0-20mm (.78'') Typically used to stabilize and guide wires and cables in processes involving lump and neckdown detectors or diameter gauges. Optionally available with a built-in rubber spring that allows the guide to slightly open when a lump or joint passes through. Other roller materials are available. Can be supplied as either a single or double unit.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Spring Single / Double Execution Direction
8245 0.00 mm 20.00 mm n/a mm 50.00 mm n/a mm 24.00 mm No Double Ambidextrous
8985 0.00 mm 20.00 mm n/a mm 50.00 mm n/a mm 24.00 mm Yes Double Ambidextrous
8983 0.00 mm 20.00 mm n/a mm 50.00 mm n/a mm 24.00 mm No Single Ambidextrous
8984 0.00 mm 20.00 mm n/a mm 50.00 mm n/a mm 24.00 mm Yes Single Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 8245
Opening Window, Min 0.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 50.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 24.00 mm
Article. No 8985
Opening Window, Min 0.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 50.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 24.00 mm
Article. No 8983
Opening Window, Min 0.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 50.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 24.00 mm
Article. No 8984
Opening Window, Min 0.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 50.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 24.00 mm
!
