Anodized Aluminium body, with Ceramic Rollers

Anodized Aluminium body, with Ceramic Rollers

Drawing No: 3-300450-01

Description

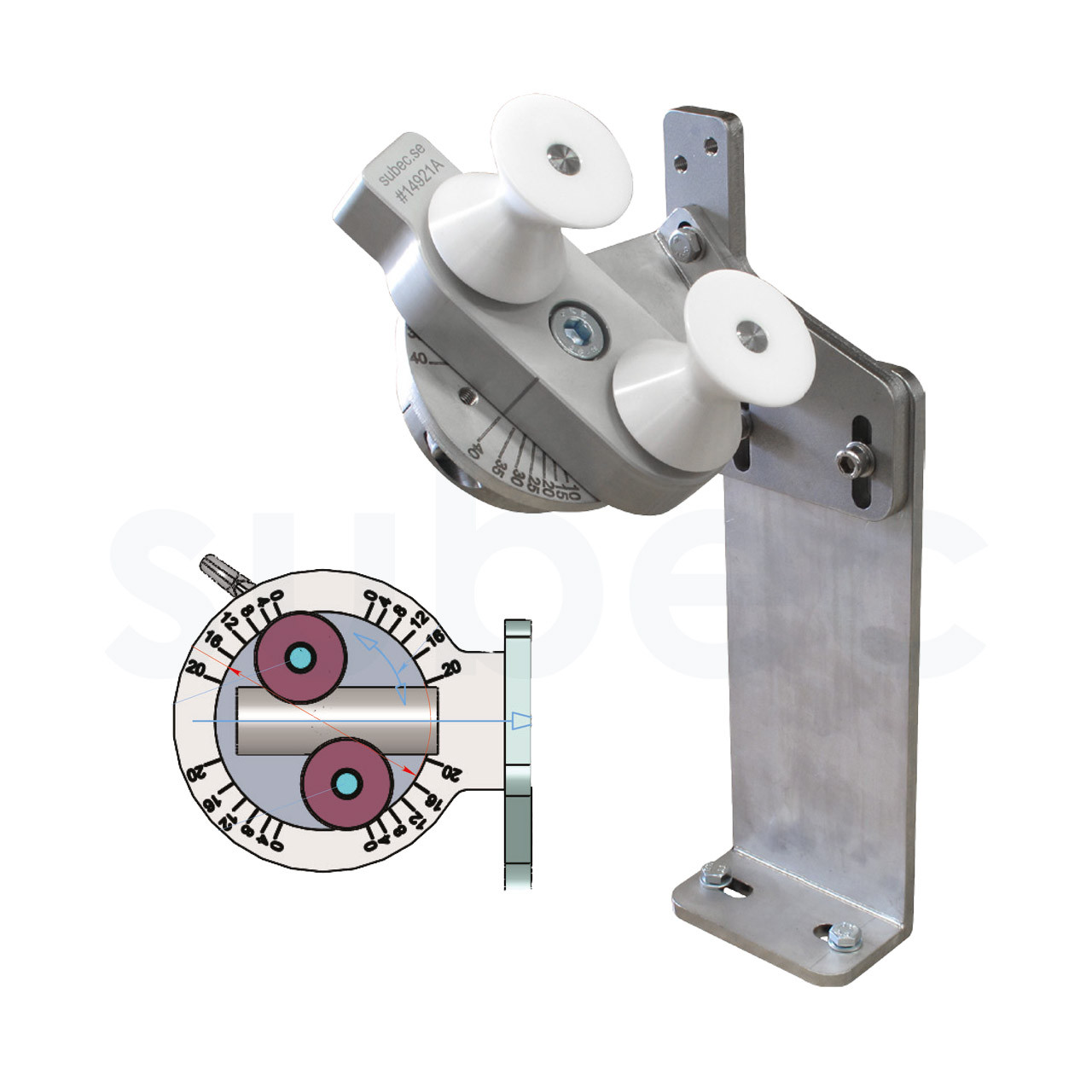

Products Ø 0-20mm (.78'') or 0-40mm (1.57'') Rotary Inlet & Outlet Guides for Diameter 20–40mm. Typically used to stabilize and guide wires and cables in processes involving lump and neckdown detectors or diameter gauges. Optionally available with a built-in rubber spring that allows the guide to slightly open when a lump or joint passes through. Available with various brackets for mounting.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Spring Single / Double Execution Direction
14921A 10.00 mm 40.00 mm n/a mm 45.00 mm n/a mm 40.00 mm Yes Single Ambidextrous
14142B 20.00 mm 20.00 mm n/a mm 28.00 mm n/a mm 25.00 mm No n/a Ambidextrous
14804B 0.00 mm 20.00 mm n/a mm 28.00 mm n/a mm 25.00 mm Yes n/a Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 14921A
Opening Window, Min 10.00 mm
Opening Window, Max 40.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 45.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 40.00 mm
Article. No 14142B
Opening Window, Min 20.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 28.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 25.00 mm
Article. No 14804B
Opening Window, Min 0.00 mm
Opening Window, Max 20.00 mm
Diameter, Roller Vert. n/a mm
Diameter, Roller Horz. 28.00 mm
Length, Roller Vert. n/a mm
Length, Roller Horz. 25.00 mm
!
