Side-Mounted Roller Guide

Side-Mounted Roller Guide

Drawing No: 3-401382-00

Description

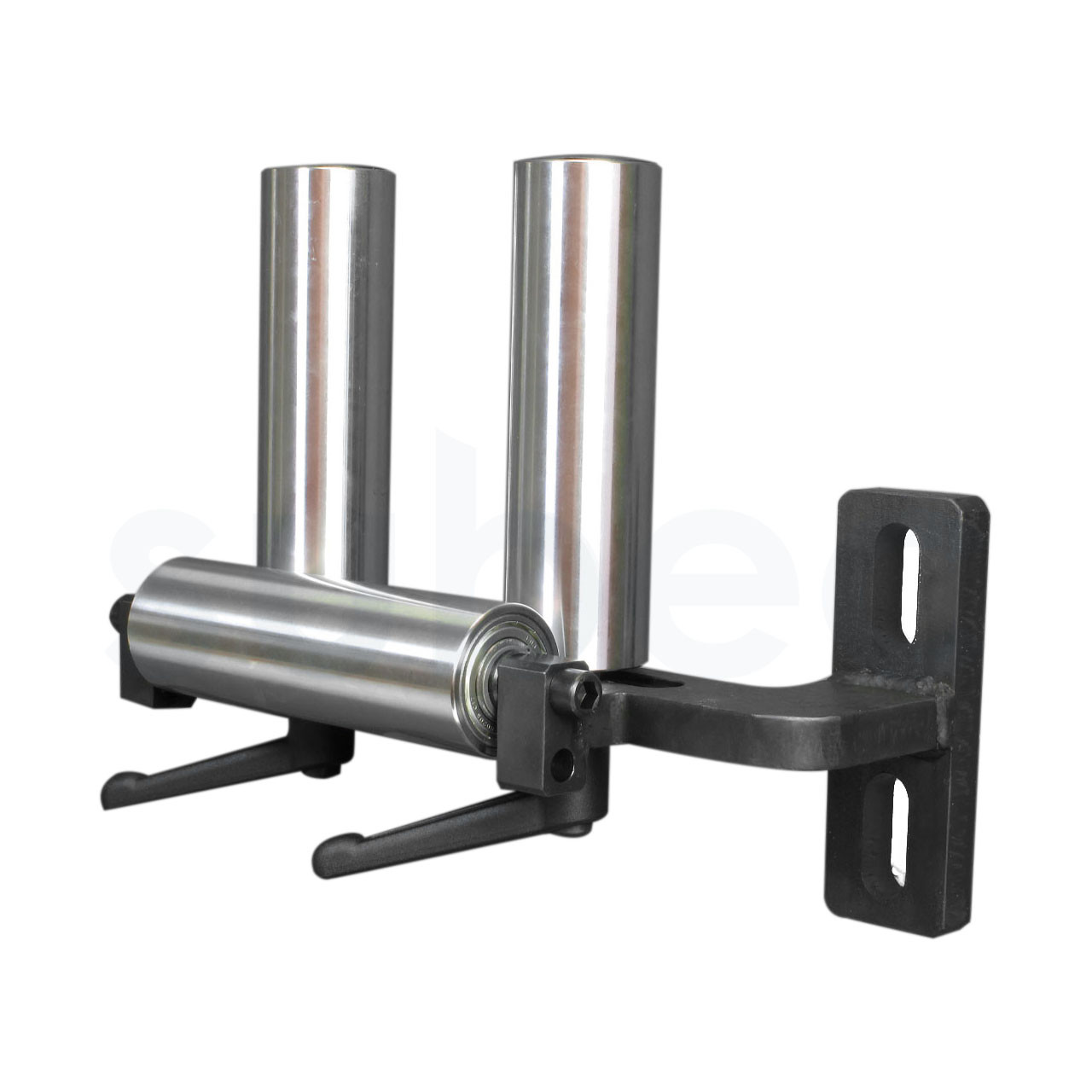

A robust side-mounted adjustable roller guide, designed for reliable guiding of cables, wires, or material strips. It features dual vertical rollers and quick-lock handles for fast and secure adjustment of the window opening. The design of the bracket is Ambidextrous.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Roller Guide Type Suffix Direction
13912-LR 0.00 mm 165.00 mm 60.00 mm 60.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide n/a Left to Right
13912-RL 0.00 mm 165.00 mm 60.00 mm 60.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide n/a Right to Left

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 13912-LR
Opening Window, Min 0.00 mm
Opening Window, Max 165.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 200.00 mm
Length, Roller Horz. 200.00 mm
Article. No 13912-RL
Opening Window, Min 0.00 mm
Opening Window, Max 165.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 200.00 mm
Length, Roller Horz. 200.00 mm
!
