Roller Systems; opening 60mm (2,36")

Roller Systems; opening 60mm (2,36")

Drawing No: 3-400080-00

Description

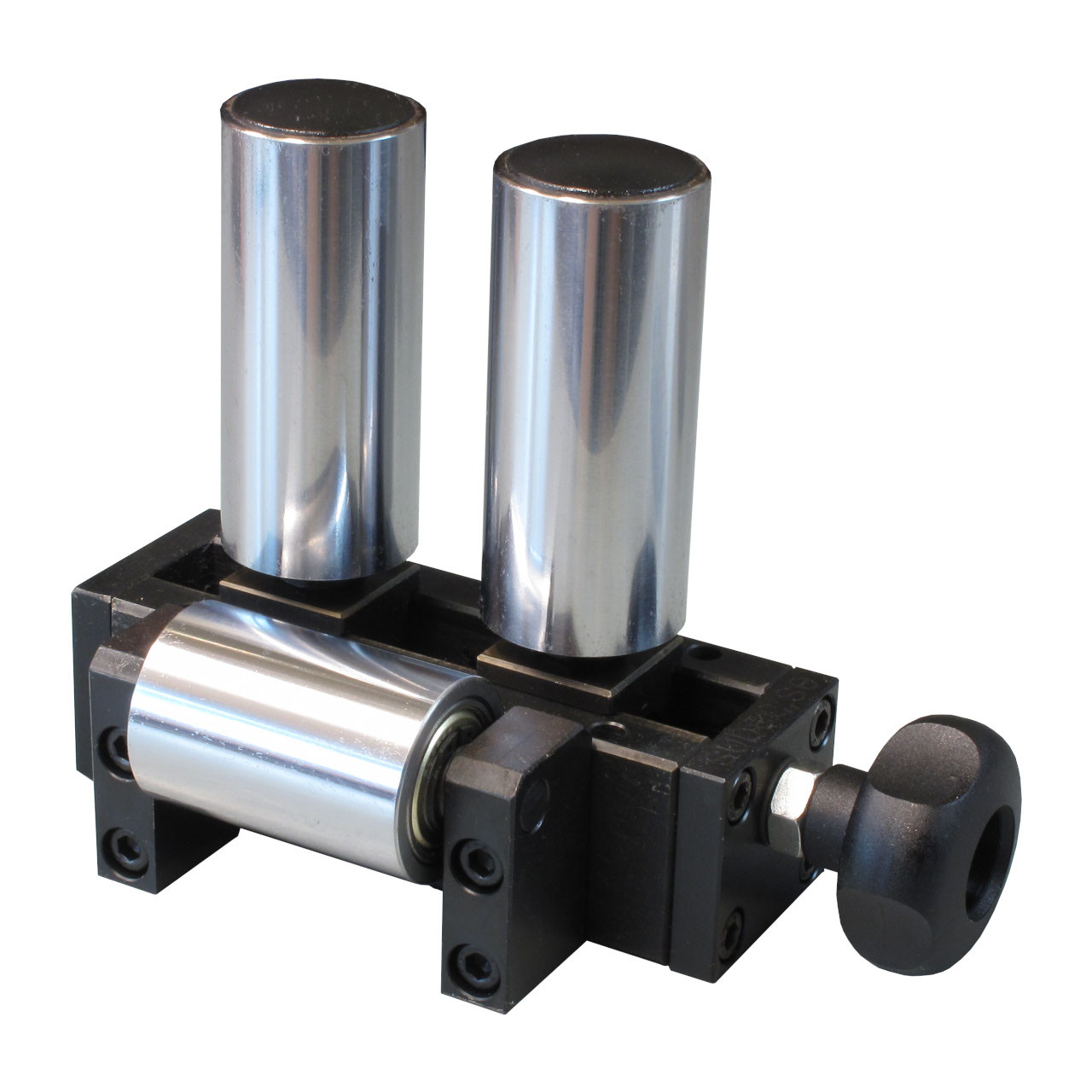

These Roller Guides have one horizontal roller and two vertical rollers. When the knob is turned the vertical rollers close down to zero opening. Length of vertical rollers, typically 60, 90 or 90mm long. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Roller Guide Type Suffix Direction
0052 0.00 mm 60.00 mm 40.00 mm 40.00 mm 90.00 mm 60.00 mm Symmetrically Adjustable Guide n/a Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0052
Opening Window, Min 0.00 mm
Opening Window, Max 60.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 60.00 mm
!
