Roller Systems; opening 35mm (1,37")

Roller Systems; opening 35mm (1,37")

Drawing No: 3-400283-00

Description

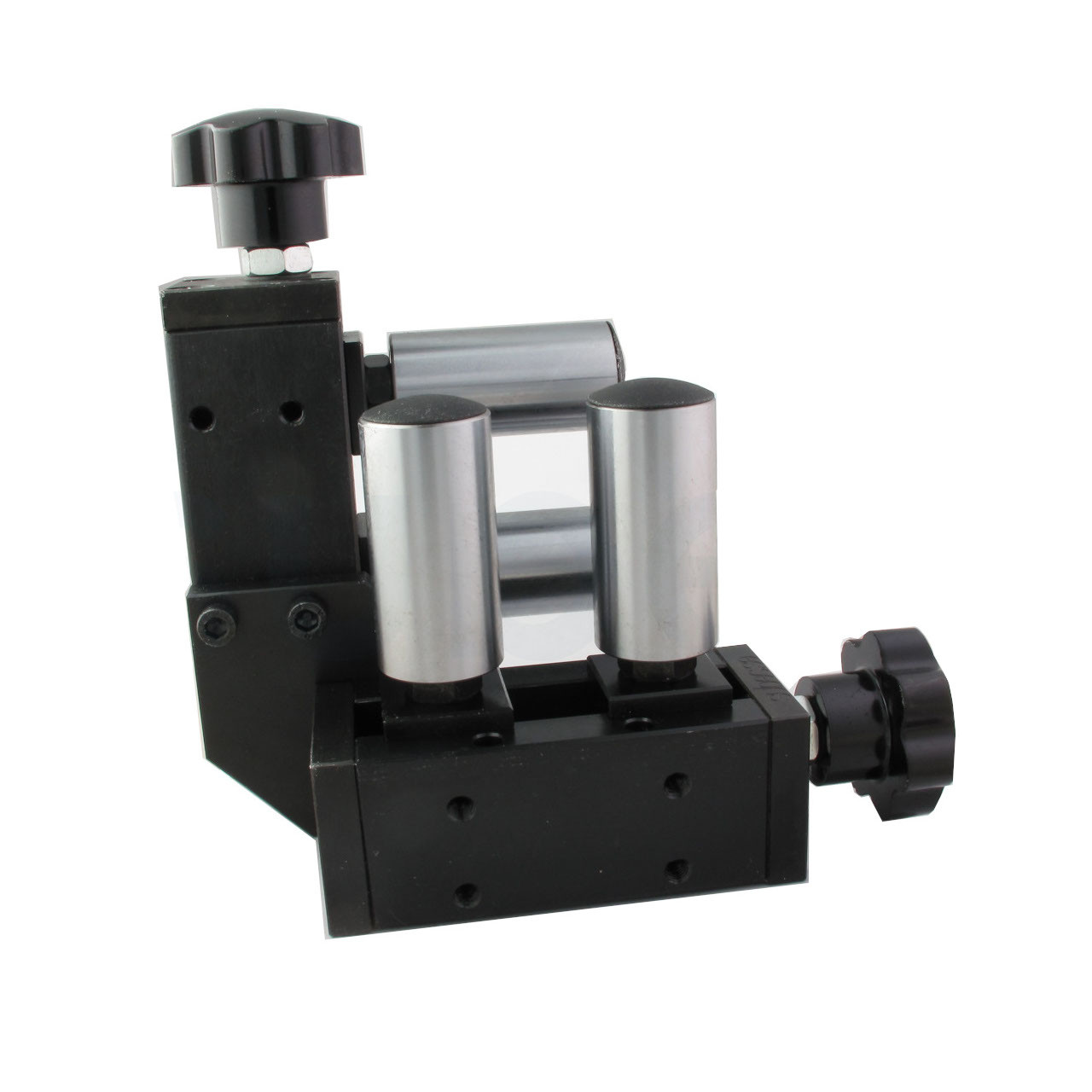

These Roller Guides feature two horizontal rollers and two vertical rollers. Each set of rollers is independently adjustable: one knob controls the vertical rollers, allowing for an opening from 0 to 35 mm, while the other knob adjusts the horizontal rollers within the same range. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Max Opening Window, Min Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Roller Guide Type Suffix Direction
16778 35.00 mm 0.00 mm 30.00 mm 30.00 mm 60.00 mm 60.00 mm Symmetrically Adjustable Guide n/a Left to Right
0051 35.00 mm 0.00 mm 30.00 mm 30.00 mm 60.00 mm 60.00 mm Symmetrically Adjustable Guide n/a Right to Left

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 16778
Opening Window, Max 35.00 mm
Opening Window, Min 0.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 60.00 mm
Length, Roller Horz. 60.00 mm
Article. No 0051
Opening Window, Max 35.00 mm
Opening Window, Min 0.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 60.00 mm
Length, Roller Horz. 60.00 mm
!
