Roller Guide, Spring Loaded

Roller Guide, Spring Loaded

Drawing No: 3-400440-00

Description

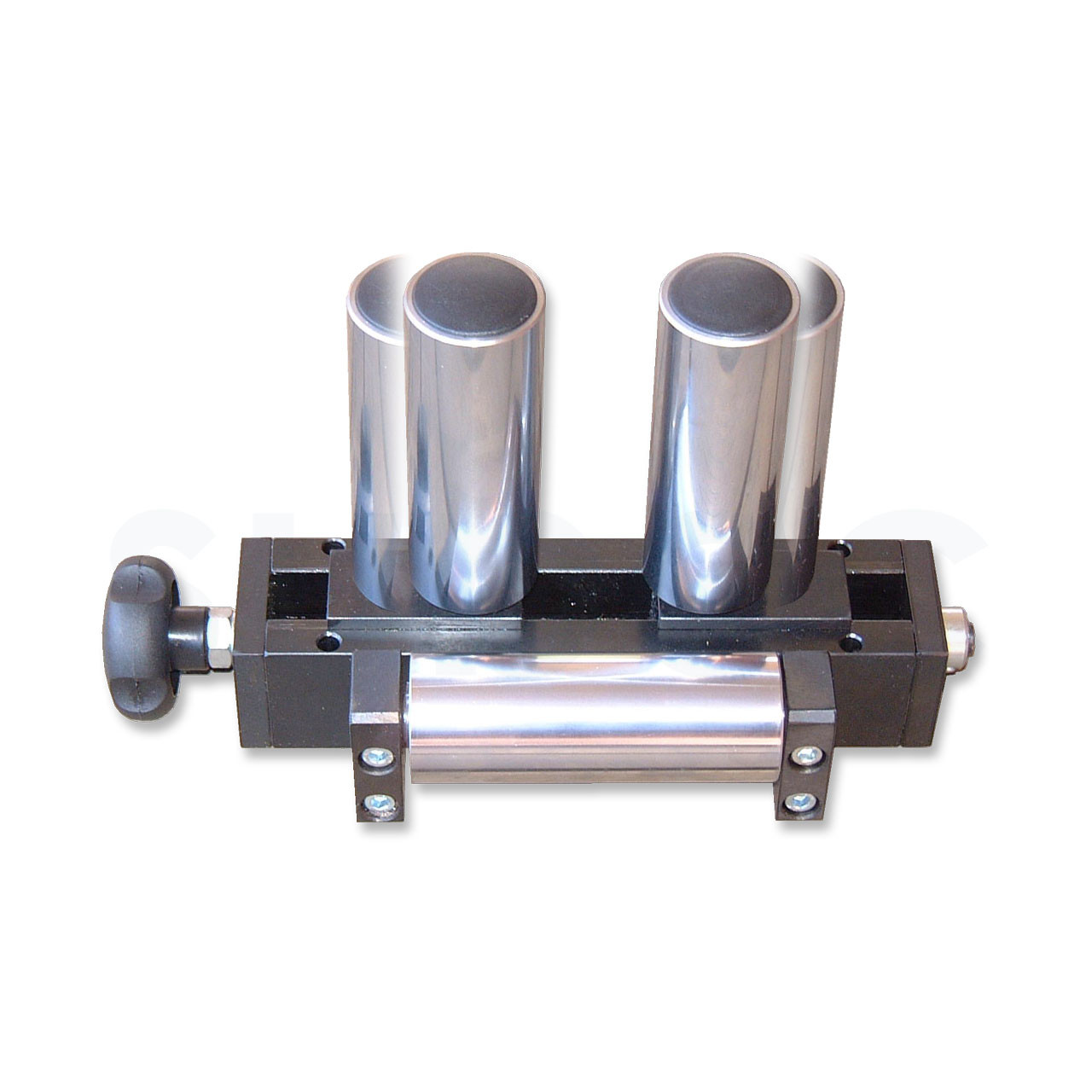

These Roller Guides feature one horizontal roller and two vertical rollers. The system is spring-loaded, meaning each vertical roller is mounted on an individual mechanical mechanism that allows it to deflect laterally by up to 10 mm. This enables the guide to accommodate lumps or splices passing through the pre-set opening. A typical spring force is 44 N. Vertical rollers are typically available in lengths of 60, 90, or 120 mm. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
5771 60.00 mm 80.00 mm 30.00 mm 40.00 mm 60.00 mm 110.00 mm HRX Symmetrically Adjustable Guide Ambidextrous spring loaded
1079 0.00 mm 50.00 mm 40.00 mm 40.00 mm 90.00 mm 110.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
5772 0.00 mm 130.00 mm 40.00 mm 40.00 mm 60.00 mm 150.00 mm HRX Symmetrically Adjustable Guide Ambidextrous 50N
5831 0.00 mm 110.00 mm 40.00 mm 40.00 mm 90.00 mm 150.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
12223 0.00 mm 50.00 mm 40.00 mm 40.00 mm 60.00 mm 110.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
5031 0.00 mm 50.00 mm 40.00 mm 40.00 mm 110.00 mm 110.00 mm HRX Symmetrically Adjustable Guide 54N
3623 90.00 mm 0.00 mm 60.00 mm 60.00 mm 160.00 mm 150.00 mm HRX Symmetrically Adjustable Guide Ambidextrous Spring-Loaded

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5771
Opening Window, Min 60.00 mm
Opening Window, Max 80.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 60.00 mm
Length, Roller Horz. 110.00 mm
Article. No 1079
Opening Window, Min 0.00 mm
Opening Window, Max 50.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 110.00 mm
Article. No 5772
Opening Window, Min 0.00 mm
Opening Window, Max 130.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 60.00 mm
Length, Roller Horz. 150.00 mm
Article. No 5831
Opening Window, Min 0.00 mm
Opening Window, Max 110.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 150.00 mm
Article. No 12223
Opening Window, Min 0.00 mm
Opening Window, Max 50.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 60.00 mm
Length, Roller Horz. 110.00 mm
Article. No 5031
Opening Window, Min 0.00 mm
Opening Window, Max 50.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 110.00 mm
Length, Roller Horz. 110.00 mm
Article. No 3623
Opening Window, Min 90.00 mm
Opening Window, Max 0.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 150.00 mm
!
