Roller Guide, Two-Side Indv. Adj. Vert. Rollers

Roller Guide, Two-Side Indv. Adj. Vert. Rollers

Drawing No: 3-300078-00

Description

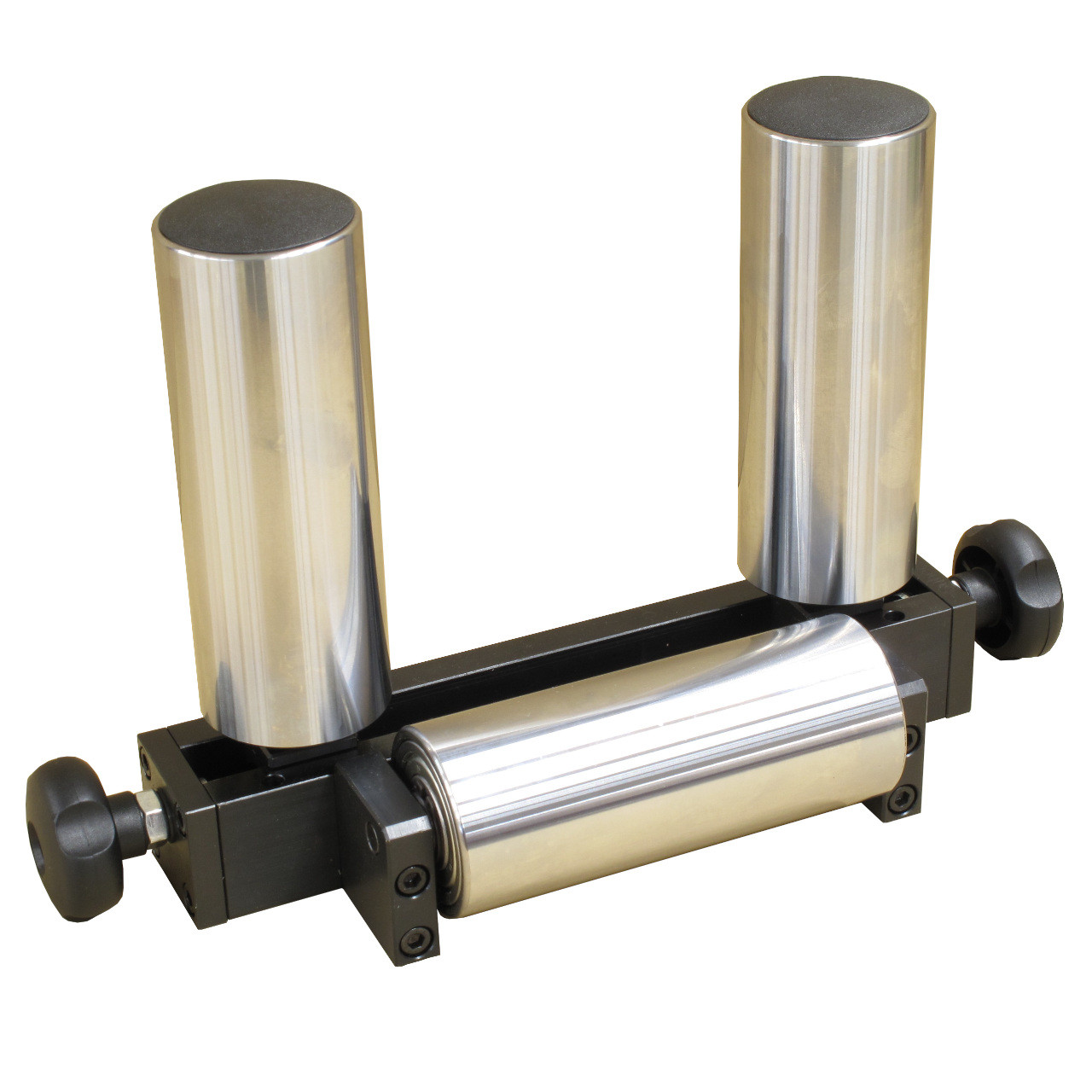

These Roller Guides feature one horizontal roller and two vertical rollers. By turning the knobs individually, the vertical rollers move toward or away from the center. The length of the vertical rollers can vary. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
5807A 0.00 mm 125.00 mm 40.00 mm 40.00 mm 110.00 mm 110.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous Ind. Adj. Vert. Rollers
7297 0.00 mm 150.00 mm 60.00 mm 60.00 mm 160.00 mm 150.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous _

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5807A
Opening Window, Min 0.00 mm
Opening Window, Max 125.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 110.00 mm
Length, Roller Horz. 110.00 mm
Article. No 7297
Opening Window, Min 0.00 mm
Opening Window, Max 150.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 150.00 mm
!
