Roller Cross, Lower Fixed

Roller Cross, Lower Fixed

Drawing No: 3-400263-02

Description

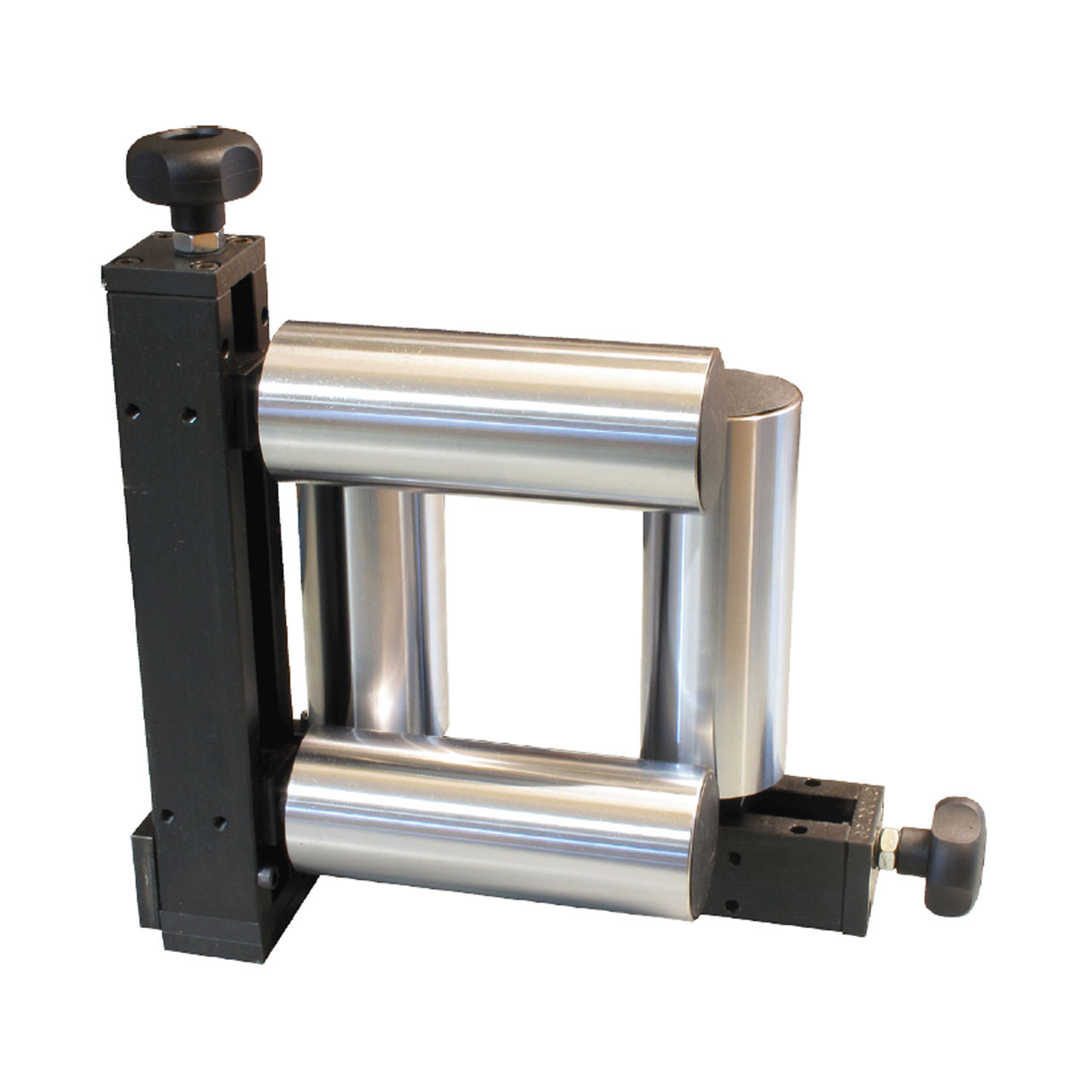

Sturdy Roller Cross, available in both left- and right-hand configurations. Equipped with D60 HRX rollers (hardened steel with hard chromium plating), with the lower horizontal roller fixed in position. The remaining rollers are adjustable via a small handwheel.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
17218A 0.00 mm 200.00 mm 60.00 mm 60.00 mm 160.00 mm 160.00 mm HRX Symmetrically Adjustable Guide Left to Right M16
17268A 0.00 mm 200.00 mm 60.00 mm 60.00 mm 160.00 mm 160.00 mm HRX Symmetrically Adjustable Guide Right to Left M16

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 17218A
Opening Window, Min 0.00 mm
Opening Window, Max 200.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 160.00 mm
Article. No 17268A
Opening Window, Min 0.00 mm
Opening Window, Max 200.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 160.00 mm
!
