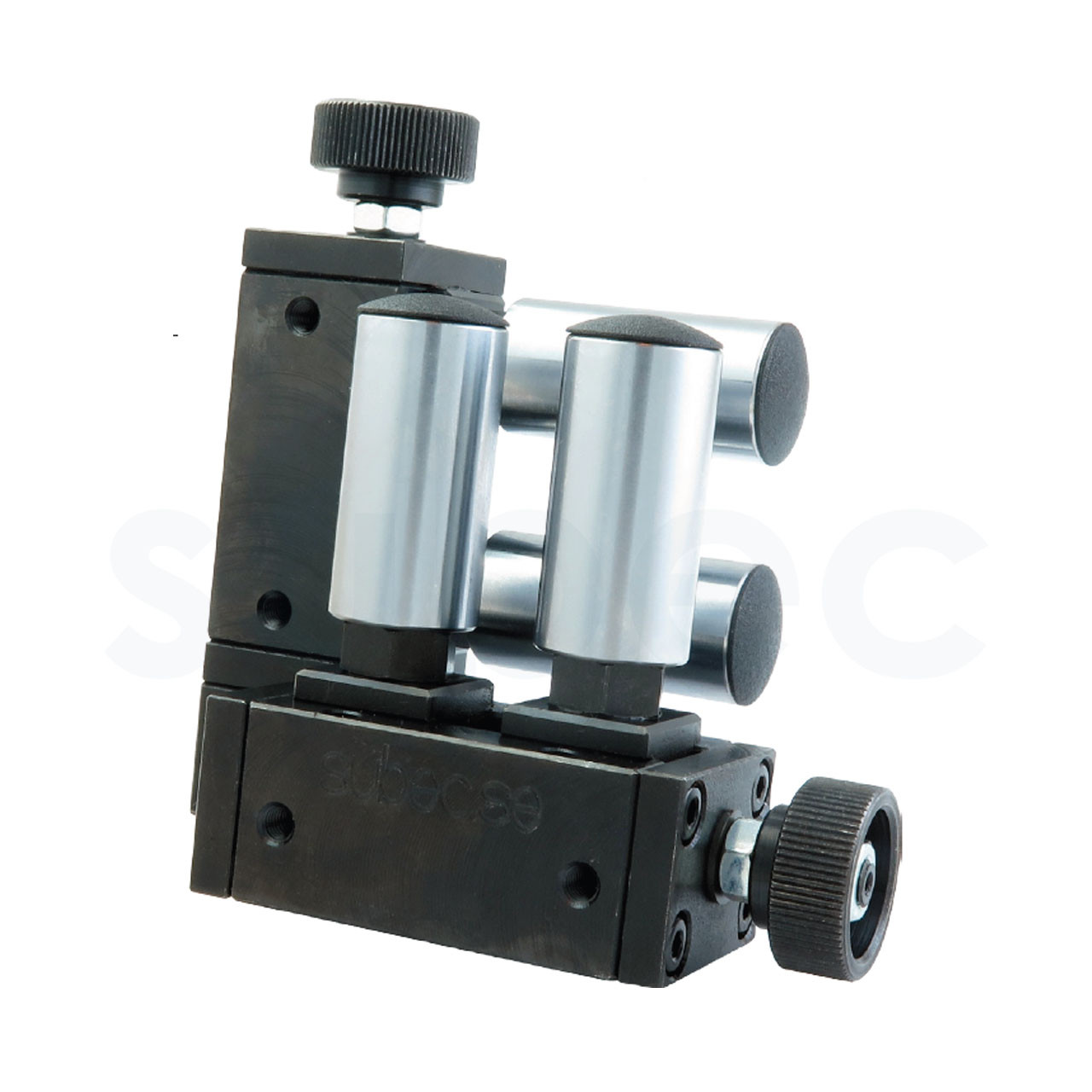

Mini Adjustable Roller Cross

Mini Adjustable Roller Cross

Drawing No: 3-300124-00

Description

Opening window from 0–13 mm (½"). Equipped with hardened steel, hard-chromed Ø20 mm rollers as standard. Other roller types available on request.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
10913 0.00 mm 46.00 mm 20.00 mm 20.00 mm 40.00 mm 40.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
3945 0.00 mm 13.00 mm 20.00 mm 20.00 mm 40.00 mm 40.00 mm HRX Symmetrically Adjustable Guide Right to Left n/a
14847 0.00 mm 13.00 mm 20.00 mm 20.00 mm 40.00 mm 40.00 mm HRX Symmetrically Adjustable Guide Left to Right n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 10913
Opening Window, Min 0.00 mm
Opening Window, Max 46.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. 40.00 mm
Article. No 3945
Opening Window, Min 0.00 mm
Opening Window, Max 13.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. 40.00 mm
Article. No 14847
Opening Window, Min 0.00 mm
Opening Window, Max 13.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. 40.00 mm
!
