Fixed Roller Crosses, Var 3

Fixed Roller Crosses, Var 3

Drawing No: 3-400956-00

Description

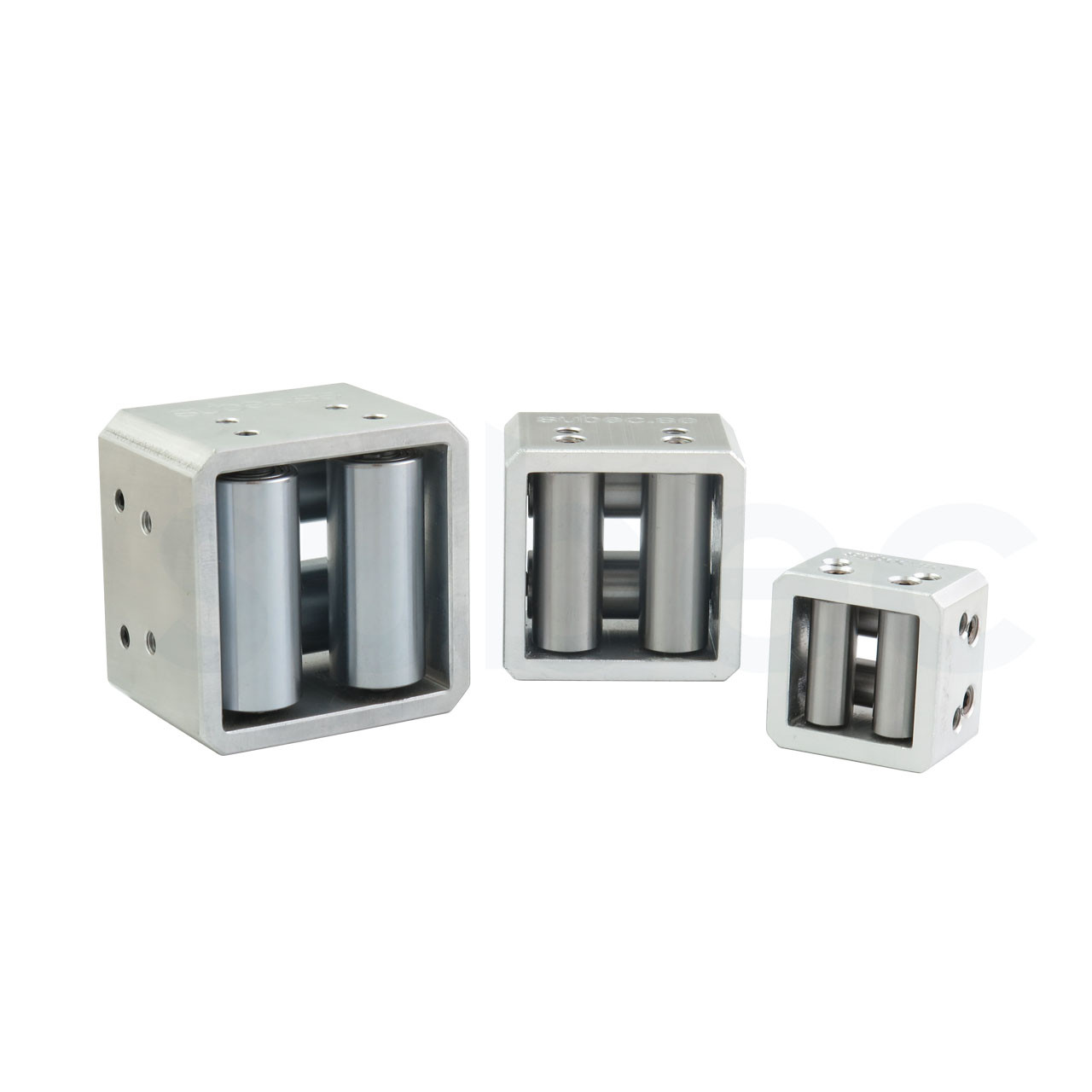

These Roller Crosses have a lightweight aluminium body and feature a fixed opening window. The low weight makes them particularly suitable for rotating or dynamic applications, as it helps reduce inertia. The standard roller cylinder material is HRX, but other material options, such as PA6, hardened steel or tungsten carbide, are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Max Opening Window, Min Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Roller Guide Type Suffix Direction
10469A 12.00 mm 12.00 mm 40.00 mm 100.00 mm n/a mm n/a mm Fixed Guide n/a Ambidextrous
7816 7.00 mm 7.00 mm 16.00 mm 38.00 mm 16.00 mm 38.00 mm Fixed Guide n/a Ambidextrous
11369 4.00 mm 4.00 mm 8.00 mm 21.00 mm 8.00 mm 21.00 mm Fixed Guide n/a Ambidextrous
11368 6.00 mm 6.00 mm 12.00 mm 31.00 mm 12.00 mm 31.00 mm Fixed Guide n/a Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 10469A
Opening Window, Max 12.00 mm
Opening Window, Min 12.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 100.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
Article. No 7816
Opening Window, Max 7.00 mm
Opening Window, Min 7.00 mm
Diameter, Roller Vert. 16.00 mm
Length, Roller Vert. 38.00 mm
Diameter, Roller Horz. 16.00 mm
Length, Roller Horz. 38.00 mm
Article. No 11369
Opening Window, Max 4.00 mm
Opening Window, Min 4.00 mm
Diameter, Roller Vert. 8.00 mm
Length, Roller Vert. 21.00 mm
Diameter, Roller Horz. 8.00 mm
Length, Roller Horz. 21.00 mm
Article. No 11368
Opening Window, Max 6.00 mm
Opening Window, Min 6.00 mm
Diameter, Roller Vert. 12.00 mm
Length, Roller Vert. 31.00 mm
Diameter, Roller Horz. 12.00 mm
Length, Roller Horz. 31.00 mm
!
