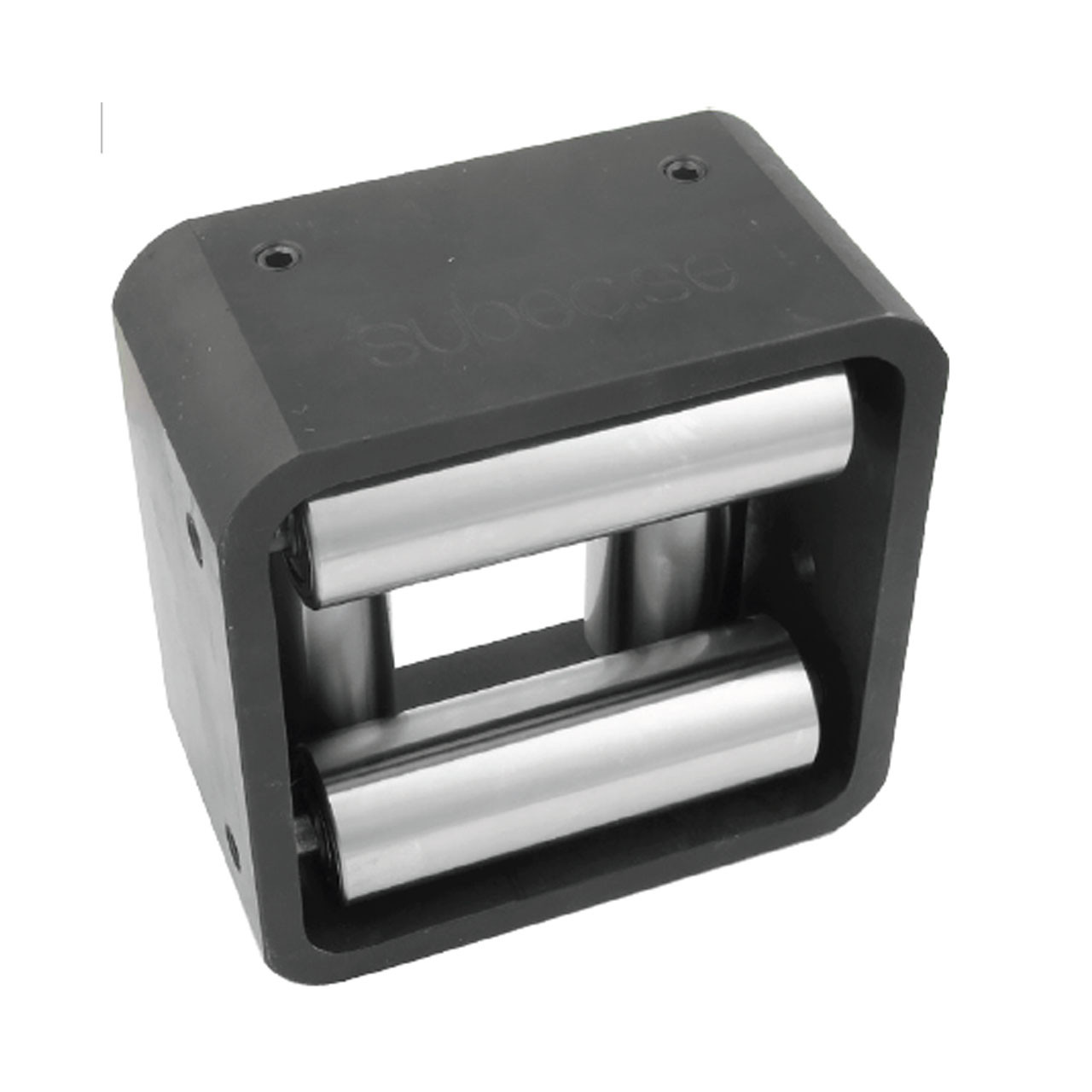

Fixed Roller Crosses, Var 2

Fixed Roller Crosses, Var 2

Drawing No: 3-400401-00

Description

These Roller Crosses, commonly referred to as Roller Boxes, feature a fixed opening window ranging from 6 mm (0.24") to 130 mm (5.1"). Roller diameters typically range from 25 mm (1") to 60 mm (2.4"). Standard roller material is HRX (hardened steel cylinders with a hard chromium coating). Other material options, such as PA6 or tungsten carbide, are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Max Opening Window, Min Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Roller Guide Type Suffix Direction
0056A 60.00 mm 30.00 mm 20.00 mm 100.00 mm 20.00 mm 100.00 mm Fixed Guide n/a Ambidextrous
8441 40.00 mm 40.00 mm 30.00 mm 90.00 mm 30.00 mm 90.00 mm Fixed Guide n/a Ambidextrous
8718A 6.00 mm 6.00 mm 25.00 mm 60.00 mm 25.00 mm 60.00 mm Fixed Guide n/a Ambidextrous
10852 13.00 mm 13.00 mm 25.00 mm 60.00 mm 25.00 mm 60.00 mm Fixed Guide - Ambidextrous
6862B 80.00 mm 80.00 mm 20.00 mm 120.00 mm 20.00 mm 120.00 mm Fixed Guide n/a Ambidextrous
7087A 60.00 mm 60.00 mm 40.00 mm 130.00 mm 40.00 mm 130.00 mm Fixed Guide n/a Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0056A
Opening Window, Max 60.00 mm
Opening Window, Min 30.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 100.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Horz. 100.00 mm
Article. No 8441
Opening Window, Max 40.00 mm
Opening Window, Min 40.00 mm
Diameter, Roller Vert. 30.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Horz. 90.00 mm
Article. No 8718A
Opening Window, Max 6.00 mm
Opening Window, Min 6.00 mm
Diameter, Roller Vert. 25.00 mm
Length, Roller Vert. 60.00 mm
Diameter, Roller Horz. 25.00 mm
Length, Roller Horz. 60.00 mm
Article. No 10852
Opening Window, Max 13.00 mm
Opening Window, Min 13.00 mm
Diameter, Roller Vert. 25.00 mm
Length, Roller Vert. 60.00 mm
Diameter, Roller Horz. 25.00 mm
Length, Roller Horz. 60.00 mm
Article. No 6862B
Opening Window, Max 80.00 mm
Opening Window, Min 80.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 120.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Horz. 120.00 mm
Article. No 7087A
Opening Window, Max 60.00 mm
Opening Window, Min 60.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 130.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 130.00 mm
!
