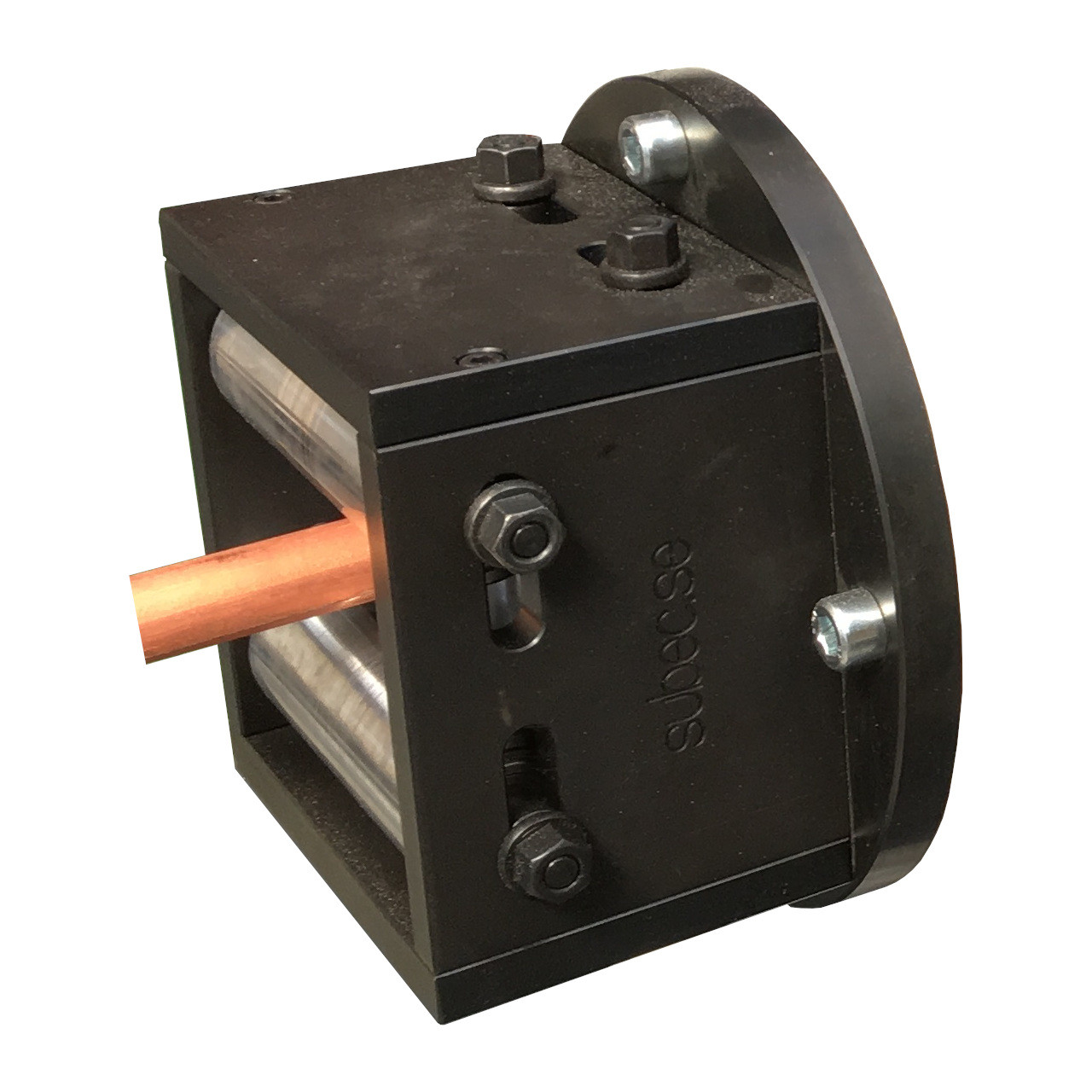

Adjustable Roller cross with flange

Adjustable Roller cross with flange

Drawing No: 3-300119-00-ADJ

Description

These Roller Crosses have adjustable openings and are available in different configurations. Various roller diameters and opening widths can be selected to match product dimensions. Standard rollers are HRX (hardened steel with a chrome layer), with polyurethane or plastic options also available

Dimensions

  • Hide Filters
Article. No Opening Window, Max Opening Window, Min Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Roller Guide Type Suffix Direction
20675 60.00 mm 0.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm Asymmetrical Adjustable Guide n/a Ambidextrous
10260 30.00 mm 0.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm Asymmetrical Adjustable Guide n/a Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20675
Opening Window, Max 60.00 mm
Opening Window, Min 0.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 10260
Opening Window, Max 30.00 mm
Opening Window, Min 0.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
!
