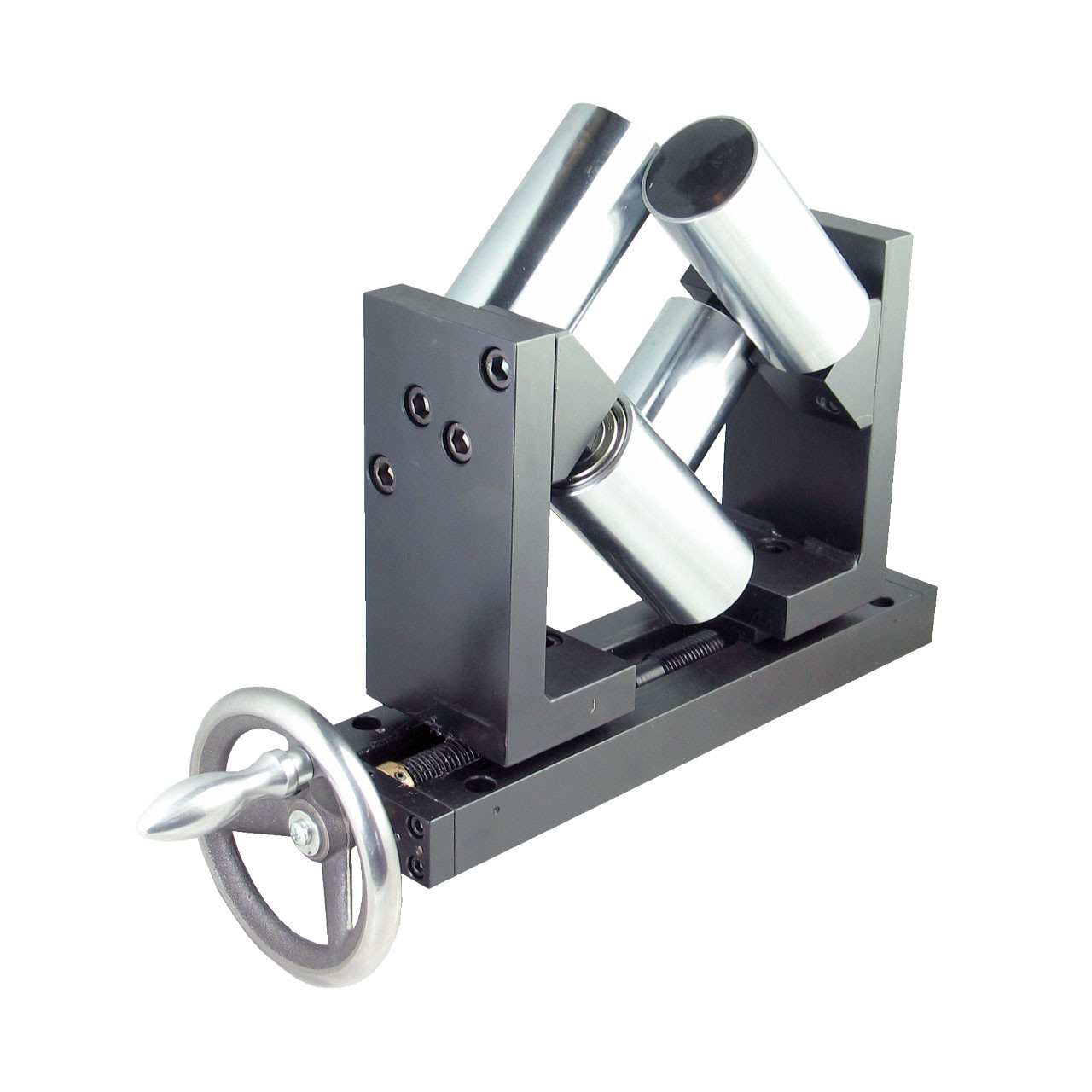

Roller Guides with rollers in 45° angle

Drawing No: 3-400327-00

Description

These roller guides have rollers positioned at a 45° angle, maintaining a consistent centerline height across various product dimensions. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available. They are available in different block sizes, allowing for varying opening windows.

Article. No	Opening Window, Max	Opening Window, Min	Diameter, Roller Vert.	Diameter, Roller Horz.	Length, Roller Vert.	Length, Roller Horz.	Roller Guide Type	Suffix	Direction
5947A	120.00 mm	50.00 mm	40.00 mm	40.00 mm	90.00 mm	90.00 mm	Symmetrically Adjustable Guide
5946A	60.00 mm	0.60 mm	40.00 mm	40.00 mm	60.00 mm	60.00 mm	Symmetrically Adjustable Guide		Ambidextrous
0767	15.00 mm	120.00 mm	60.00 mm	60.00 mm	130.00 mm	130.00 mm	Symmetrically Adjustable Guide	n/a	Ambidextrous
13031	40.00 mm	1.00 mm	25.00 mm	25.00 mm	40.00 mm	40.00 mm	Symmetrically Adjustable Guide	n/a	Ambidextrous

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert

Article. No	5947A
Opening Window, Max	120.00 mm
Opening Window, Min	50.00 mm
Diameter, Roller Vert.	40.00 mm
Diameter, Roller Horz.	40.00 mm
Length, Roller Vert.	90.00 mm
Length, Roller Horz.	90.00 mm

Article. No	5946A
Opening Window, Max	60.00 mm
Opening Window, Min	0.60 mm
Diameter, Roller Vert.	40.00 mm
Diameter, Roller Horz.	40.00 mm
Length, Roller Vert.	60.00 mm
Length, Roller Horz.	60.00 mm

Article. No	0767
Opening Window, Max	15.00 mm
Opening Window, Min	120.00 mm
Diameter, Roller Vert.	60.00 mm
Diameter, Roller Horz.	60.00 mm
Length, Roller Vert.	130.00 mm
Length, Roller Horz.	130.00 mm

Article. No	13031
Opening Window, Max	40.00 mm
Opening Window, Min	1.00 mm
Diameter, Roller Vert.	25.00 mm
Diameter, Roller Horz.	25.00 mm
Length, Roller Vert.	40.00 mm
Length, Roller Horz.	40.00 mm

Roller Guides with rollers in 45° angle

Dimensions

No products matches the diameter range
