Roller Guide, Large version, with handwheel

Roller Guide, Large version, with handwheel

Drawing No: 3-300438-00

Description

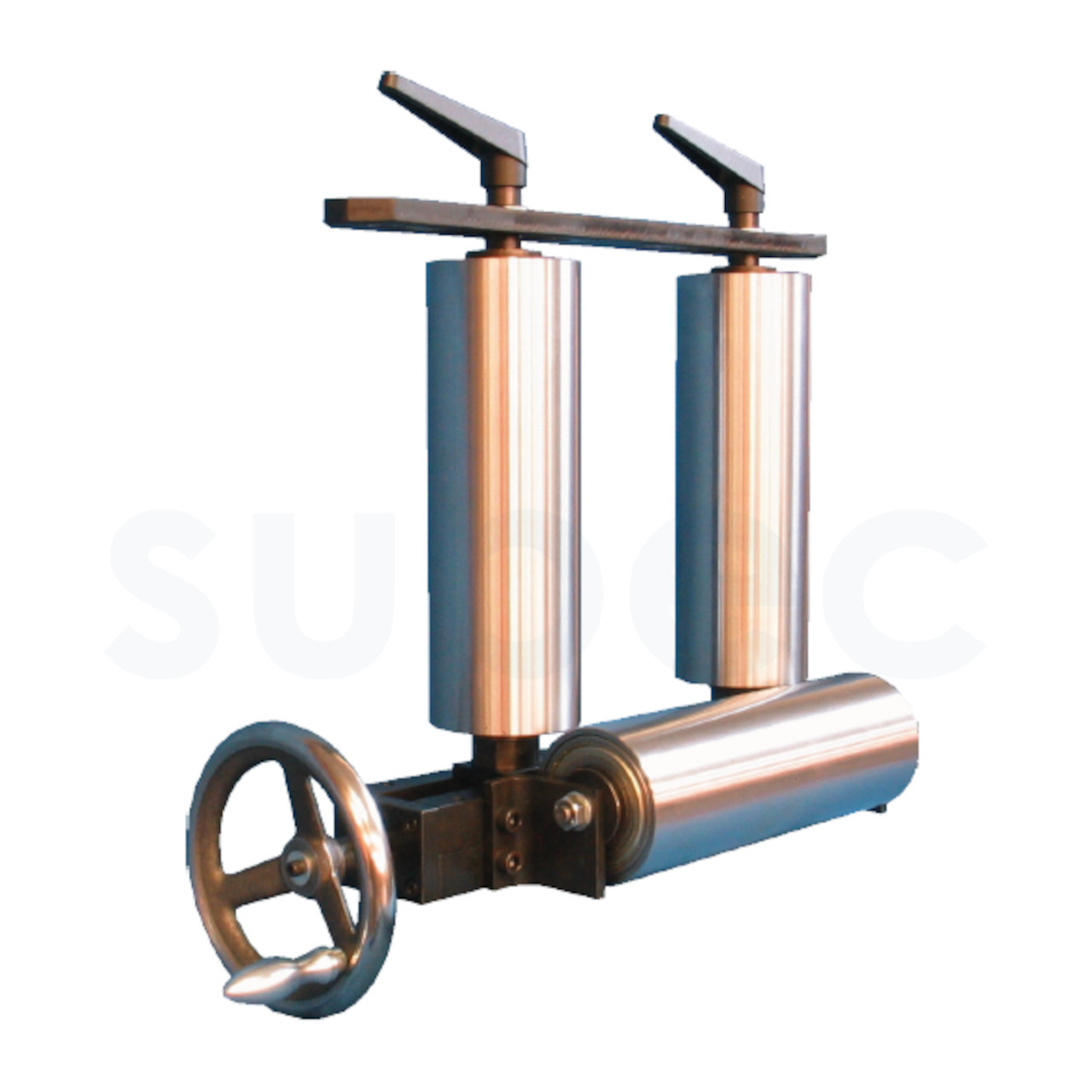

These Roller Guides have one or two horizontal rollers and two vertical rollers. When the handwheel is turned, the vertical rollers close down to zero opening. Units with long vertical rollers have a reinforcement bracket. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Roller Guide Type Material, Body Suffix Direction
15114 0.00 mm 180.00 mm 100.00 mm 100.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide Steel n/a Ambidextrous
0061 0.00 mm 175.00 mm 100.00 mm 100.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide Steel n/a Ambidextrous
11598 0.00 mm 180.00 mm 100.00 mm 100.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide Steel n/a Ambidextrous
5041 0.00 mm 175.00 mm 100.00 mm 100.00 mm 200.00 mm 200.00 mm Symmetrically Adjustable Guide Steel n/a Ambidextrous
12753 0.00 mm 160.00 mm 60.00 mm 60.00 mm 160.00 mm 200.00 mm Symmetrically Adjustable Guide Steel - Left to Right
20693 0.00 mm 290.00 mm 100.00 mm 100.00 mm 300.00 mm 300.00 mm Symmetrically Adjustable Guide Steel Handwheel Ø250 Right to Left
7720A 0.00 mm 250.00 mm 100.00 mm 100.00 mm 300.00 mm 300.00 mm Symmetrically Adjustable Guide Steel n/a Right to Left

No products matches the diameter range

Reach out to us for other dimensions on request.
