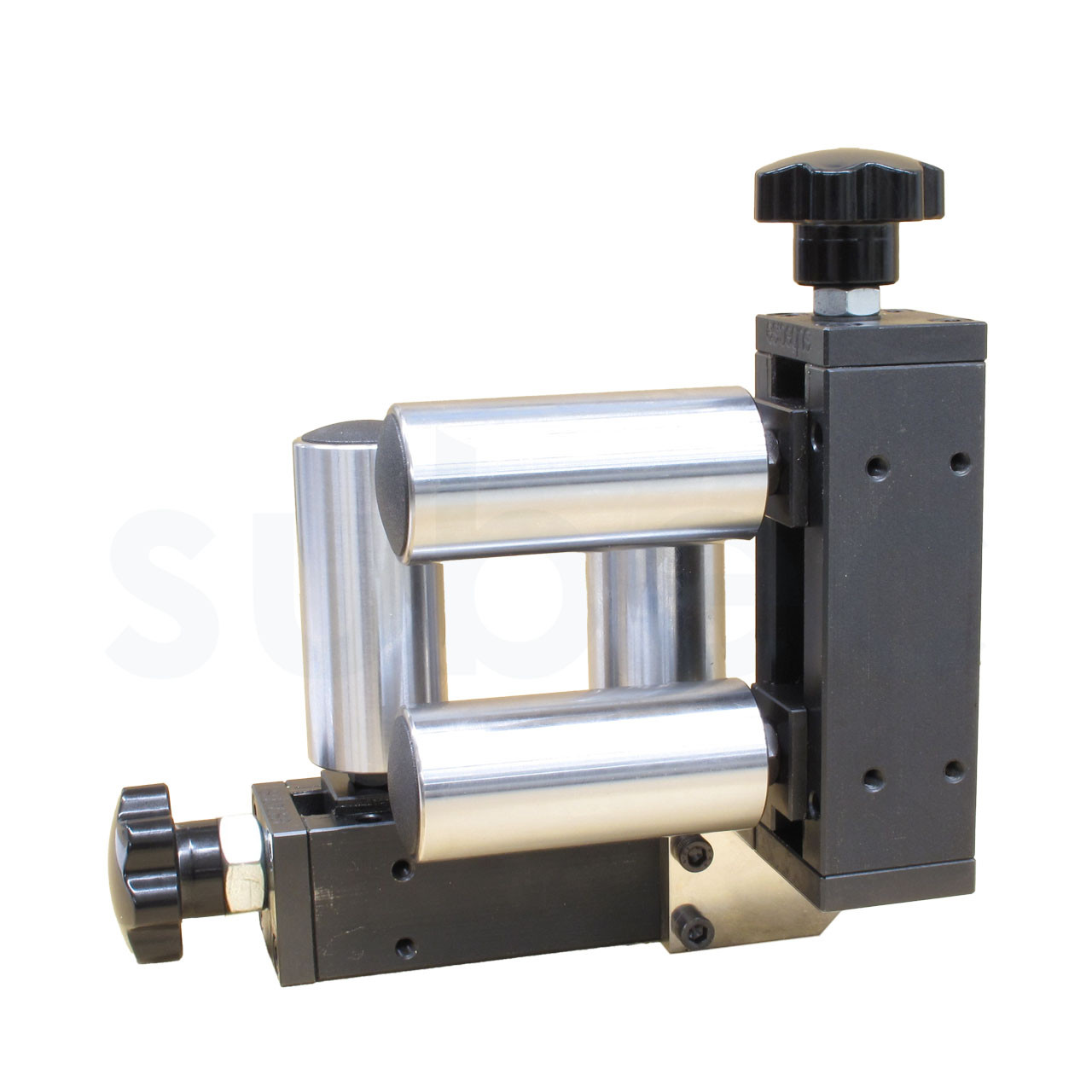

Roller Systems; opening 60mm (2,36")

Roller Systems; opening 60mm (2,36")

Drawing No: 3-300079-00

Description

These Roller Guides feature two horizontal rollers and two vertical rollers. Each set of rollers is independently adjustable: one knob controls the vertical rollers, allowing for an opening from 0 to 60 mm, while the other knob adjusts the horizontal rollers within the same range. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan, plastic or PTFE are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
19211 0.00 mm 60.00 mm 40.00 mm 40.00 mm 90.00 mm 90.00 mm PTFE Symmetrically Adjustable Guide Ambidextrous n/a
14324 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
13249 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Left to Right -
0053 0.00 mm 60.00 mm 40.00 mm 40.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
6292A 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous Rollers Individually adjustable

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 19211
Opening Window, Min 0.00 mm
Opening Window, Max 60.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 14324
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 13249
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 0053
Opening Window, Min 0.00 mm
Opening Window, Max 60.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 6292A
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
!
