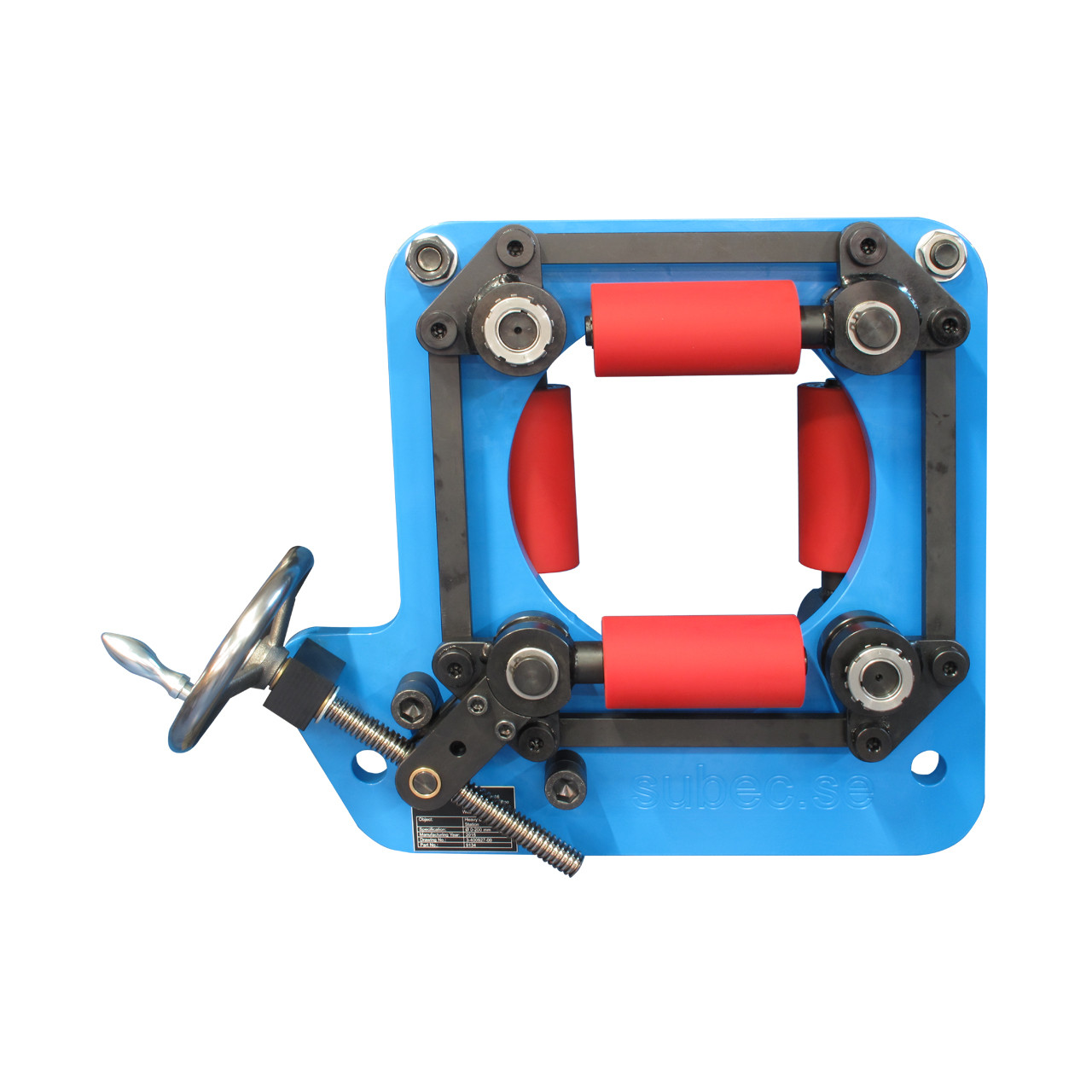

Heavy Duty IRIS Station; Handwheel

Heavy Duty IRIS Station; Handwheel

Drawing No: 3-400927-00

Description

Heavy Duty Irises with self locking threaded rod to adjust the opening window under load. Rollers can be PU coated or in Chromium plated and induction hardened steel (HRX). Postion of the handle can be adapted to your need as well as the max opening window

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Outer Material, Roller/Sheave Material, Body Coating Surface Treatment
9706 70.00 mm 300.00 mm 100.00 mm HRX Steel Painted n/a
13871 70.00 mm 450.00 mm 100.00 mm PA6 Steel Painted n/a
8377A 70.00 mm 450.00 mm 100.00 mm HRX Steel Painted n/a
9134 0.00 mm 200.00 mm 75.00 mm PU 85 Shore A Steel Painted n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 9706
Opening Window, Min 70.00 mm
Opening Window, Max 300.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave HRX
Material, Body Steel
Coating Painted
Article. No 13871
Opening Window, Min 70.00 mm
Opening Window, Max 450.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave PA6
Material, Body Steel
Coating Painted
Article. No 8377A
Opening Window, Min 70.00 mm
Opening Window, Max 450.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave HRX
Material, Body Steel
Coating Painted
Article. No 9134
Opening Window, Min 0.00 mm
Opening Window, Max 200.00 mm
Diameter, Outer 75.00 mm
Material, Roller/Sheave PU 85 Shore A
Material, Body Steel
Coating Painted
!
