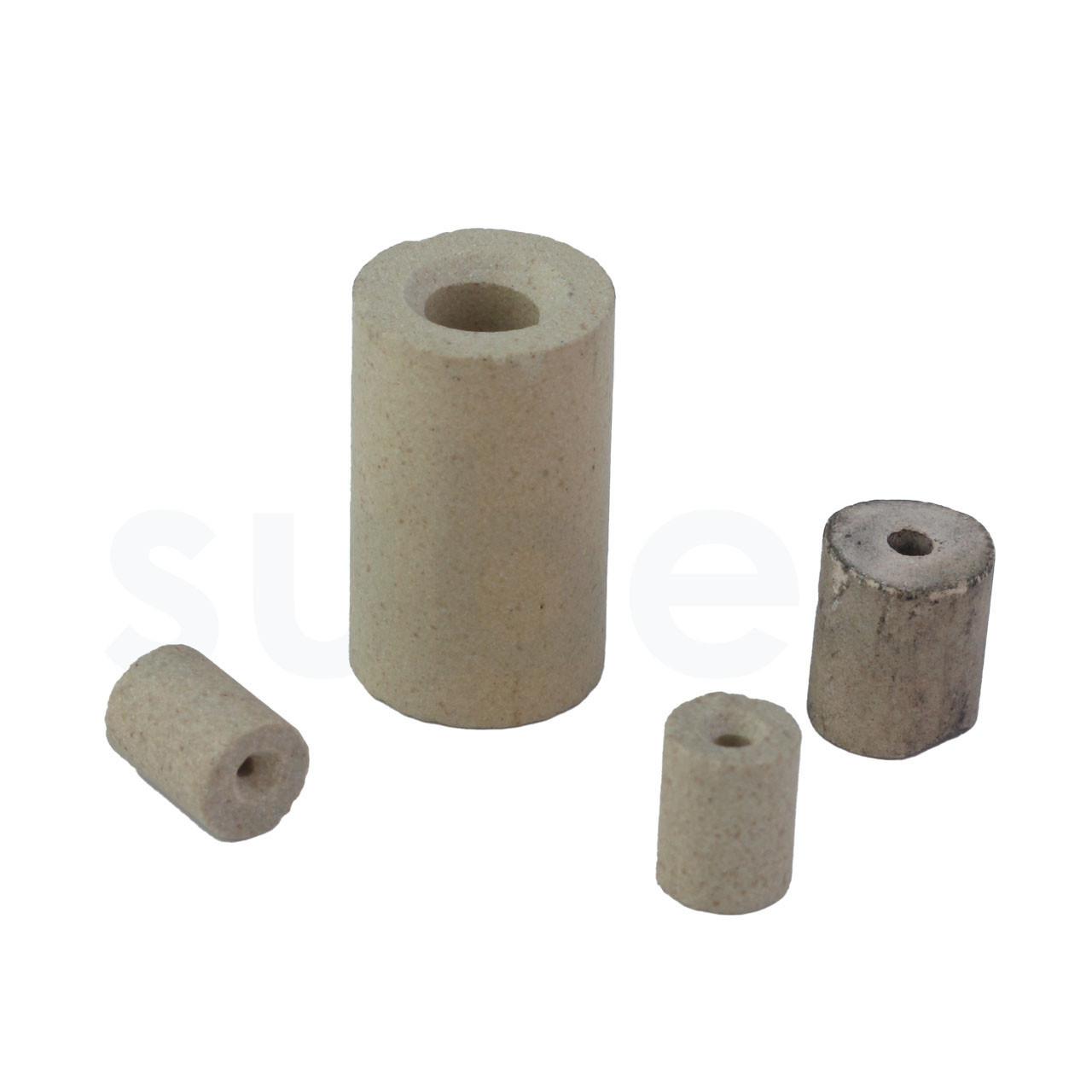

Welding Tubes in Cordierite

Welding Tubes in Cordierite

Drawing No: 3-401199-00

Description

The material cordierite offers excellent temperature and thermal shock resistance, while retaining low thermal expansion. High strength while still being brittle enough to break off after the welding is finished.

Dimensions

  • Hide Filters
Article. No Diameter, Inner Diameter, Outer Length Material, Ceramic
14099 0.43 mm 12.70 mm 12.70 mm Cordierite
9681 2.60 mm 8.00 mm 10.00 mm Cordierite
9680 1.70 mm 6.00 mm 8.00 mm Cordierite
9679 1.40 mm 6.00 mm 8.00 mm Cordierite
8251 3.50 mm 10.00 mm 20.00 mm Cordierite
8242 3.20 mm 10.00 mm 10.00 mm Cordierite
8250 3.20 mm 15.00 mm 20.00 mm Cordierite
9682 3.30 mm 10.00 mm 12.00 mm Cordierite
8246 1.20 mm 6.00 mm 10.00 mm Cordierite
8244 0.95 mm 6.00 mm 10.00 mm Cordierite
7348 1.00 mm 6.00 mm 8.00 mm Cordierite
8243 0.90 mm 6.00 mm 10.00 mm Cordierite
8241 2.60 mm 8.00 mm 10.00 mm Cordierite
7914 1.70 mm 7.00 mm 10.00 mm Cordierite
7913 1.30 mm 7.40 mm 10.00 mm Cordierite
8247 1.30 mm 6.00 mm 10.00 mm Cordierite
9678 1.20 mm 6.00 mm 8.00 mm Cordierite
10278 1.15 mm 6.00 mm 8.00 mm Cordierite
8249 2.10 mm 7.00 mm 10.00 mm Cordierite
8248 1.60 mm 7.00 mm 10.00 mm Cordierite

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 14099
Diameter, Inner 0.43 mm
Diameter, Outer 12.70 mm
Length 12.70 mm
Material, Ceramic Cordierite
Article. No 9681
Diameter, Inner 2.60 mm
Diameter, Outer 8.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 9680
Diameter, Inner 1.70 mm
Diameter, Outer 6.00 mm
Length 8.00 mm
Material, Ceramic Cordierite
Article. No 9679
Diameter, Inner 1.40 mm
Diameter, Outer 6.00 mm
Length 8.00 mm
Material, Ceramic Cordierite
Article. No 8251
Diameter, Inner 3.50 mm
Diameter, Outer 10.00 mm
Length 20.00 mm
Material, Ceramic Cordierite
Article. No 8242
Diameter, Inner 3.20 mm
Diameter, Outer 10.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 8250
Diameter, Inner 3.20 mm
Diameter, Outer 15.00 mm
Length 20.00 mm
Material, Ceramic Cordierite
Article. No 9682
Diameter, Inner 3.30 mm
Diameter, Outer 10.00 mm
Length 12.00 mm
Material, Ceramic Cordierite
Article. No 8246
Diameter, Inner 1.20 mm
Diameter, Outer 6.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 8244
Diameter, Inner 0.95 mm
Diameter, Outer 6.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 7348
Diameter, Inner 1.00 mm
Diameter, Outer 6.00 mm
Length 8.00 mm
Material, Ceramic Cordierite
Article. No 8243
Diameter, Inner 0.90 mm
Diameter, Outer 6.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 8241
Diameter, Inner 2.60 mm
Diameter, Outer 8.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 7914
Diameter, Inner 1.70 mm
Diameter, Outer 7.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 7913
Diameter, Inner 1.30 mm
Diameter, Outer 7.40 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 8247
Diameter, Inner 1.30 mm
Diameter, Outer 6.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 9678
Diameter, Inner 1.20 mm
Diameter, Outer 6.00 mm
Length 8.00 mm
Material, Ceramic Cordierite
Article. No 10278
Diameter, Inner 1.15 mm
Diameter, Outer 6.00 mm
Length 8.00 mm
Material, Ceramic Cordierite
Article. No 8249
Diameter, Inner 2.10 mm
Diameter, Outer 7.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
Article. No 8248
Diameter, Inner 1.60 mm
Diameter, Outer 7.00 mm
Length 10.00 mm
Material, Ceramic Cordierite
!
