Mini Roller Guide

Mini Roller Guide

Drawing No: 3-400370-01

Description

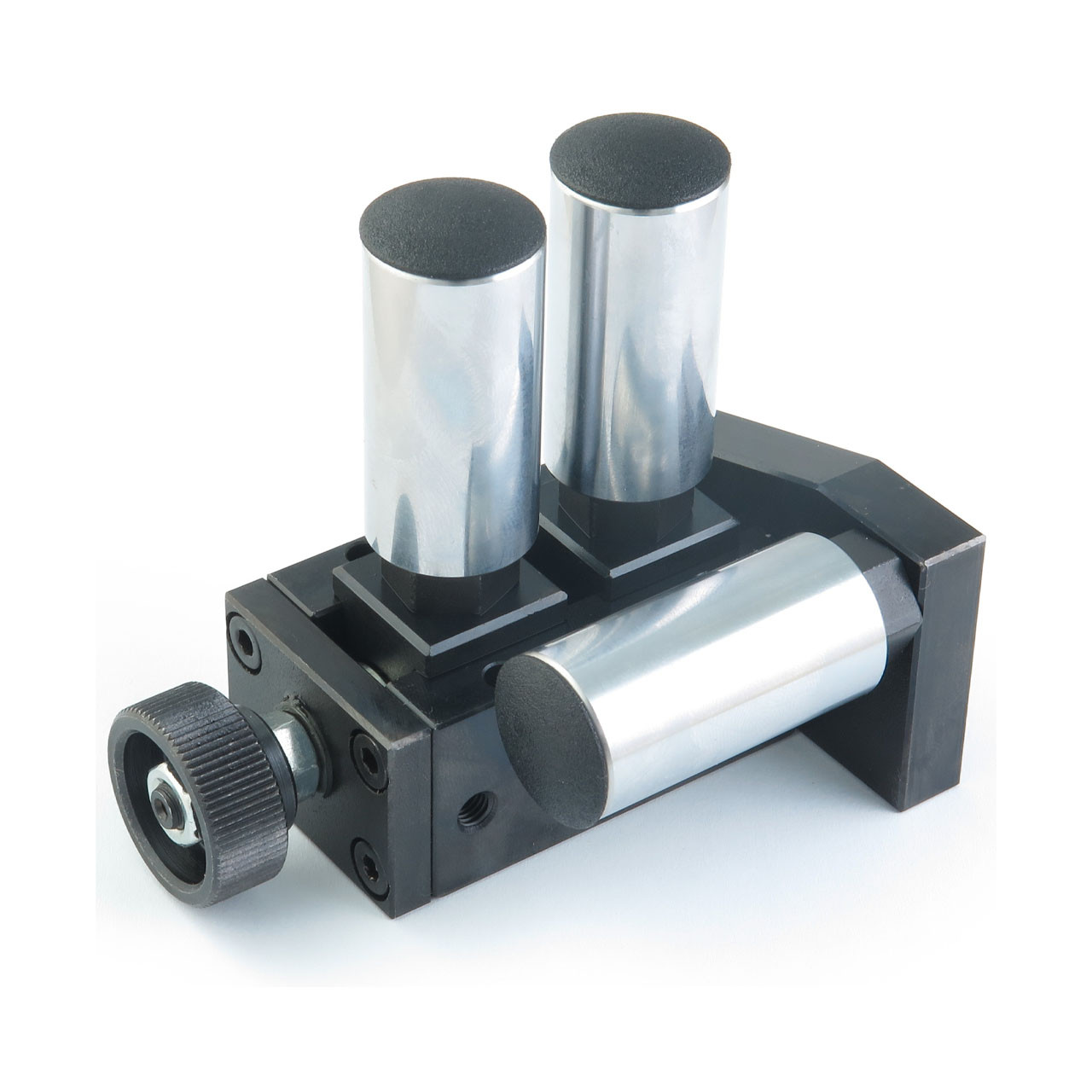

These Roller Guides feature two vertical rollers and either one horizontal roller or none. When the knob is turned the vertical rollers D20mm close down to zero opening. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
6710 0.00 mm 10.00 mm 20.00 mm n/a mm 40.00 mm n/a mm Hardened Steel HRC 58 Symmetrically Adjustable Guide Ambidextrous No Horiz. Roller
10589 0.00 mm 14.00 mm 20.00 mm n/a mm 40.00 mm n/a mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
1502A 0.00 mm 14.00 mm 20.00 mm 20.00 mm 40.00 mm 40.00 mm HRX Symmetrically Adjustable Guide Left to Right n/a
1503A 0.00 mm 14.00 mm 20.00 mm 20.00 mm 40.00 mm 40.00 mm HRX Symmetrically Adjustable Guide Right to Left n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6710
Opening Window, Min 0.00 mm
Opening Window, Max 10.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. n/a mm
Article. No 10589
Opening Window, Min 0.00 mm
Opening Window, Max 14.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. n/a mm
Article. No 1502A
Opening Window, Min 0.00 mm
Opening Window, Max 14.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. 40.00 mm
Article. No 1503A
Opening Window, Min 0.00 mm
Opening Window, Max 14.00 mm
Diameter, Roller Vert. 20.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Vert. 40.00 mm
Length, Roller Horz. 40.00 mm
!
