Ceramic Coated Groove, Standard

Ceramic Coated Groove, Standard

Drawing No: 1-400936-00

Description

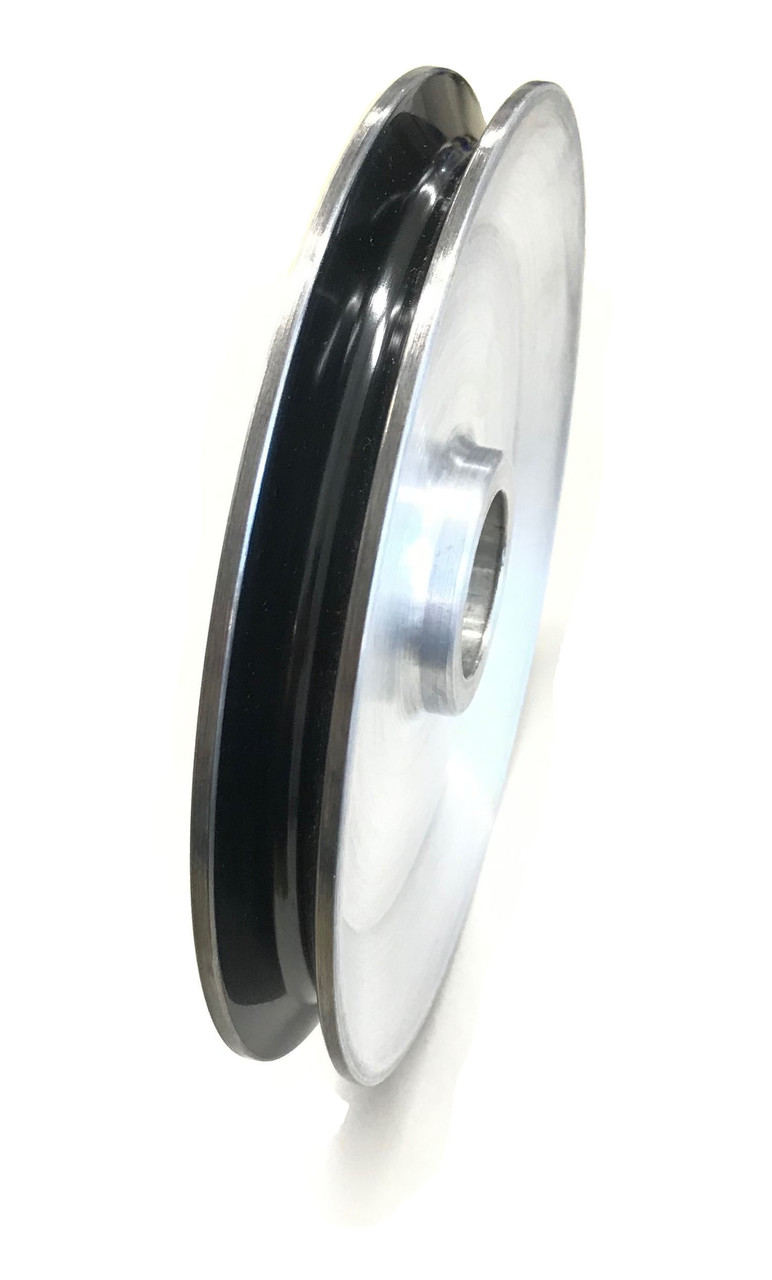

Durable aluminium wheel featuring varius groove profiles. The groove is coated with a ceramic layer that significantly increases wear resistance, making it ideal for demanding applications.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
8269 Aluminium 170.00 mm 210.00 mm 47.00 mm 21.00 mm 3.00 mm No
6578A Aluminium 90.00 mm 90.00 mm 35.00 mm 18.00 mm 2.50 mm No
20744 Aluminium 33.00 mm 50.00 mm 24.00 mm 13.00 mm 6.00 mm No
13515 Aluminium 158.00 mm 176.00 mm 35.00 mm 20.78 mm 2.00 mm No
19041 Aluminium 64.00 mm 70.00 mm 13.00 mm 8.00 mm 3.00 mm No
10511A Aluminium 170.00 mm 200.00 mm 47.00 mm n/a mm 3.00 mm No
16747 Aluminium 170.00 mm 200.00 mm 47.00 mm 14.00 mm 6.00 mm No
7924A Aluminium 123.00 mm 143.00 mm 30.00 mm n/a mm 3.00 mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 8269
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 210.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width 21.00 mm
Groove - Radius 3.00 mm
Article. No 6578A
Material, Roller/Sheave Aluminium
Diameter, Root 90.00 mm
Diameter, Outer 90.00 mm
Bearing Seat Diameter 35.00 mm
Groove - Width 18.00 mm
Groove - Radius 2.50 mm
Article. No 20744
Material, Roller/Sheave Aluminium
Diameter, Root 33.00 mm
Diameter, Outer 50.00 mm
Bearing Seat Diameter 24.00 mm
Groove - Width 13.00 mm
Groove - Radius 6.00 mm
Article. No 13515
Material, Roller/Sheave Aluminium
Diameter, Root 158.00 mm
Diameter, Outer 176.00 mm
Bearing Seat Diameter 35.00 mm
Groove - Width 20.78 mm
Groove - Radius 2.00 mm
Article. No 19041
Material, Roller/Sheave Aluminium
Diameter, Root 64.00 mm
Diameter, Outer 70.00 mm
Bearing Seat Diameter 13.00 mm
Groove - Width 8.00 mm
Groove - Radius 3.00 mm
Article. No 10511A
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 200.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width n/a mm
Groove - Radius 3.00 mm
Article. No 16747
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 200.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width 14.00 mm
Groove - Radius 6.00 mm
Article. No 7924A
Material, Roller/Sheave Aluminium
Diameter, Root 123.00 mm
Diameter, Outer 143.00 mm
Bearing Seat Diameter 30.00 mm
Groove - Width n/a mm
Groove - Radius 3.00 mm
!
